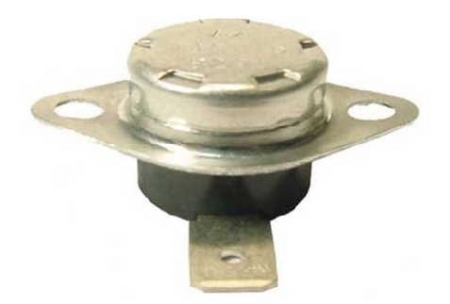

Thermostat
Item No.: | 4A-BF2 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 4F, NO. 4, Ln. 560, Zhongzheng Rd, Xindian Dist,
TEL: +886-2-22190080
Fax: +886-2-22192508
Online Showroom:
2 Products
(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)
(2) FIXED BRACKET : B Cap
(3) TERMINAL ORIENTATION : Horizontal (4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )
* Action temp. and reset temp. can be set up depend on customer’s request Honest-Well Bimetal thermal switch T24 Series - We can customize this bimetal thermostat according to client’s needs. This snap action temperature switch in three single-pole, single-throw (SPST) switch actions:
Automatic Reset – either open or close its contacts on temperature rise.
Manual Reset – Available with contacts that open on temperature rise. The contacts must be reset by pressing the button after the device cools down.
One shot – Available with contacts that open on temperature rise, and which never reclose unless the ambient temperature drops below -35°C.
For clients who wish to have action temperature above 180C°C, we’d recommend our ceramic thermostat H2 series.
(2) FIXED BRACKET : B Cap
(3) TERMINAL ORIENTATION : Horizontal (4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )
* Action temp. and reset temp. can be set up depend on customer’s request Honest-Well Bimetal thermal switch T24 Series - We can customize this bimetal thermostat according to client’s needs. This snap action temperature switch in three single-pole, single-throw (SPST) switch actions:
Automatic Reset – either open or close its contacts on temperature rise.
Manual Reset – Available with contacts that open on temperature rise. The contacts must be reset by pressing the button after the device cools down.
One shot – Available with contacts that open on temperature rise, and which never reclose unless the ambient temperature drops below -35°C.
For clients who wish to have action temperature above 180C°C, we’d recommend our ceramic thermostat H2 series.
