Thermal Grease - AK-145

Thermal Grease

Item No.: AK-145
Supplier Details
Country: Taiwan
City: Taichung City 428017
Address: No. 12-1, Qiancun E. Rd., Daya Dist.
TEL: +886-4-25685848
Fax: +886-4-25685857
Online Showroom: 103 Products

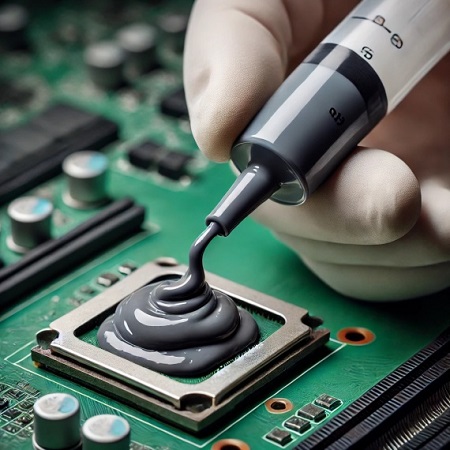

20W/mK Thermal Grease

Features
  • Environmentally friendly resin-based thermal conductive paste, non-silicon oil system, no oil leakage problems.
  • High thermal conductivity of 20.0 W/mK.
  • Does not harden after application, easy to use, easy to remove, convenient for rework, and good workability.
  • Complies with RoHS 2.0 regulations.

Applications
  • Helps to reduce the temperature of heat-generating components or enhances thermal conductivity applications.
  • Applicable to 5G, electric vehicles, electronic devices, temperature control equipment, CPUs, etc.

Basic Properties
  • Appearance: Grayish paste
  • Viscosity @25°C: 70,000 ~ 110,000 cps
  • Density: 2.4 ~ 2.6 g/cm³
  • Working Temperature: 110°C
  • Thermal Conductivity: 20.0 W/mK (Hot Disk ISO22007-2.2)
  • Dielectric Strength: 10 kV/mm
  • Volume Resistivity: >10¹¹ ohm-cm
  • Thermal Decomposition Temperature: <0.5% (390°C)
  • UL Flammability Rating: UL94 V-0 (internal test)
  • Packaging: 1KG/Barrel
  • Shelf Life: 6 months @25°C, unopened
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Thermal Grease

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
