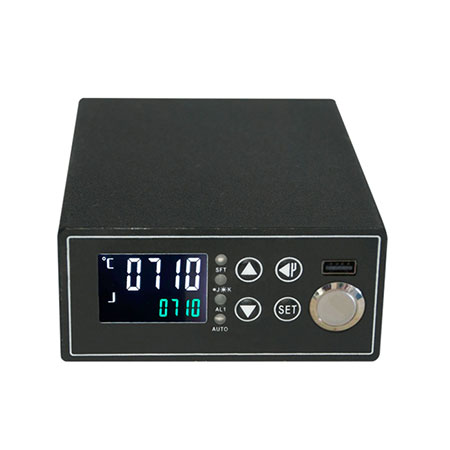

E Nail Controller
| Item No.: | E-Nail Controller / Portable Controller |
Supplier Details
Country: Taiwan
City: Kaohsiung City 81546
Address: No. 99-3, Qinan Rd., Dashe Dist.
TEL: +886-7-3511963
Fax: +886-7-3556515
Online Showroom:
56 Products
1/16 DIN
PID Control
CE marking, best option for temperature controller with low cost and high stability
Heater break alarm (HBA) added to increase the overall safety
Other functions available upon request
Technical Data
Specifications
PID Control
CE marking, best option for temperature controller with low cost and high stability
Heater break alarm (HBA) added to increase the overall safety
Other functions available upon request
Technical Data
- Thermocouple short circuit/open circuit protection
Short circuit, open circuit and system short circuit protection. - Live temperature display
Simultaneously display the current value and the set value - Auto / Manual mode
Selectable auto / manual mode, gives user different options under different circumstances. - Plug and use
Automatically detects parts such as the manifold or the nozzle. Can function without manual settings. - Ambient temperature compensation
The change in ambient temperature brings possible uncertainties when it comes to temperature control. AAP controllers contain ambient temperature sensors inside, to compensate the change in ambient temperature automatically, in order to control the temperature precisely. - Compatible with J/K Type thermocouple
Support J and K type thermocouple, user can use either type - Selectable °C/°F Display
Can switch the temperature unit via the menu - Overheating protection
Automatic stops the current output when temperature is over the set value + the limit. The limit value can be set. - Autotuning
AAP controllers focus heavily on power saving, setting the sample rate to 4ms to quickly adjust the output in order to reduce the power consumption.
Specifications
| Power | AC110V / 220V |
| Frequenct | 50 / 60 Hz |
| Power consumption | ~2VA |
| Memory | FLASHROM |
| Sensor input | (Thermocouple) : K , J Temperature Range 0~800°C Sample Frequency 80 samples / second Precision to 0.1°C Tolerance ±0.5°C (Under normal load) |
| Main control output | SSR / TRIAC |
| Operatng current | 1320W |
| Rated power | 12A |
| Control method | PID |
| Alarm output | 1a SPST-NO, 250VAC,8A(resistive load) |
| Short circuit protection response time | <8ms |
| Working temperature and humidity | -10 ~ 50°C (In case of condensation)20%~90% RR |
| Storage temperature | -25 ~ 65°C (without condensation) |
| Dimension | W48 x H48 x D91 mm |
| Weight | ~120 g |
