Multi Technology RFID Reader

Introduction:

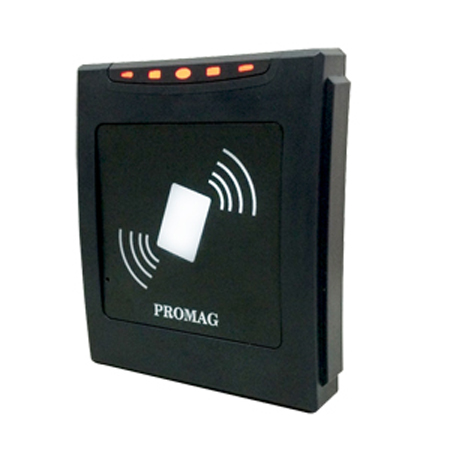

HF9A is configurable reader which is designed to support various types of high frequency cards. It aims to offer a simple yet powerful solution for customers reducing inventory overheads and also ties clients from other device providers. With HF9A's configuring software, the user may set up transferring baud rate and output interface; as well as set up the output data size, format, and type. In short, HF9A provides a wide range of compatibility and the ability for flexible modification, making it the top choice reader on the market

Features:

Supported card types: ISO 14443A & B, ISO 15693 and INSIDE PicoTag.
• Supported output interface: Wiegand, TK2 and RS232
• Supported baudrate: 2400bps to 115200bps
• Enable/Disable any types of card reading
• Energy saving mode: LEDs off while standby
• Selectable UID bits to output value

Applications:
·Access Control System
·Data Collection System
·Time Attendance System
·Registration System

Specifications:

Power Requirements	12V@ 160mA
Interface	Wiegand, RS232, ABA TK2
Card type	ISO 14443A/B, ISO15693, INSIDE Pico Tag
Maximum reading distance	Up to 50 mm
Frequency	13.56 MHz standard
Audio/Visual Indication	Internal LED and Buzzer
Weight	320g
Dimensions	105(L) x 105 (W) x 20.74(D) mm
Housing material	ABS
Environment	Operating temperature 0 °C ~ +60 °C Operating relative humidity 10~90%

※ Specification is subject to change without notice.
