Tag Encoder
| Item No.: | GPW100 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 8F, No. 31 Lane 169, Kang-Ning Street, Hsi-Chih Dist
TEL: +886-2-26954214
Fax: +886-2-26954213
Online Showroom:
84 Products

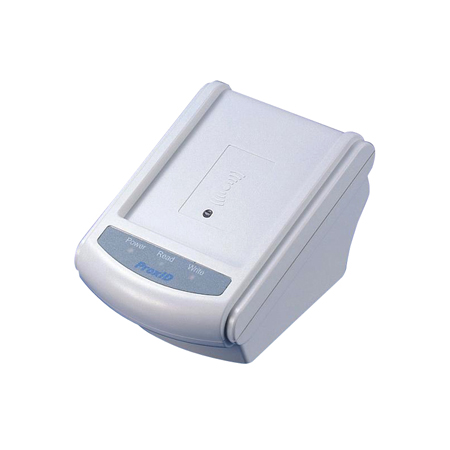

Proximity Tag Encoder
Introduction:
GPW100 Proximity Tag Encoder interfaces to any PC with an RS-232 serial port, high performance and high reliability. The Encoder comes with an utility software that enables you to encode the ID code into the proximity tag easily at your side. Due to GPW100, it becomes possible for you to program the proximity tag with the ID code you want.
Features:
·Encoded tags by GPW100 can be read by all GP Series readers or any other GP compatible readers
·RS-232 interface, 9600, N, 8, 1
·Utility software features:
≯Read a Card
≯Write a Card
≯Write cards from a file
≯Edit / Write a Card
≯Write Cards with progressive numbers
≯Duplicate a Card
Specifications:
※ Specification is subject to change without notice.
Introduction:
GPW100 Proximity Tag Encoder interfaces to any PC with an RS-232 serial port, high performance and high reliability. The Encoder comes with an utility software that enables you to encode the ID code into the proximity tag easily at your side. Due to GPW100, it becomes possible for you to program the proximity tag with the ID code you want.
Features:
·Encoded tags by GPW100 can be read by all GP Series readers or any other GP compatible readers
·RS-232 interface, 9600, N, 8, 1
·Utility software features:
≯Read a Card
≯Write a Card
≯Write cards from a file
≯Edit / Write a Card
≯Write Cards with progressive numbers
≯Duplicate a Card
Specifications:
| Frequency | 125KHz, ASK |
| Format | 64 bits, Manchester coding |
| Interface | RS-232 9600, no parity, 8 data bits, 1 stop bit |
| Tag | GiTAG1 (the only suitable tag for GPW100) Chip type: GI 8693 Read/Write ID Code: 10 digits in Hex 125KHz, ASK, 64 bits, Manchester coding Rate timing: MOD 64 (64 clocks per bit) Compatibility: EM H4002 (after programmed) Passive, no battery required |
| ID number | 10 digits in Hex or 13 digits in Decimal Wiegand number format: option |
| Operating temperature | 0 ~ 50°C |
| Storage temperature | -10 ~ 55°C |
| Humidity | 10 ~ 90% relative |
| Dimensions | 86 (W) x 120 (L) x 80 (H) mm |
| Power requirement | DC 9V, 500mA |
※ Specification is subject to change without notice.
