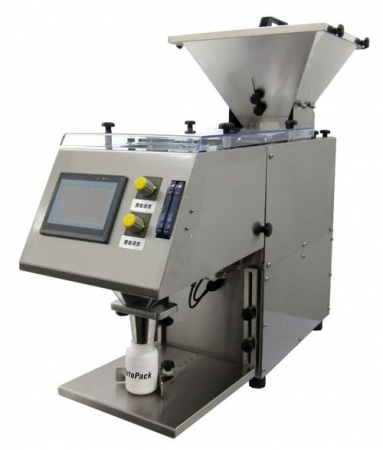

Tabletop Twin-Channel Tablet / Capsule Counting Machine Model No.:TM-100

TM-100 counter is designed to feed and count any size,shape or quantity of tablet and capsule without change parts.
It's simple to operate and easy to clean.

FEATURES:
Variable speed control for twin tracks
Stainless steel outlet funnel and clear plastic dust cover
Tool-free release for counting different products
Japan made “ Keyence” high accuracy fiber sensor
Front mounted touch screen control panel
Count display with reset
Height adjustable support stand
Tabletop or conveyor mounting
Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement

OPTIONS:
1.Drugs bag pre-filling machine
2.Conveyor mounting


SPECIFICATIONS:
Counting Speed: 300~600 pcs/min
Power: Single Phase 110 or 220VAC, 50/60Hz
Air requirement: 2 CFM at 90 PSI
Bottle Size: 48mm~100mm ;
Max Height 116mm
Product Range : 2mm-40mm
Machine Dimensions: (L)390mm (W)826mm (H)761.5mm
(For reference only, the real drawing should be considered as final.)
