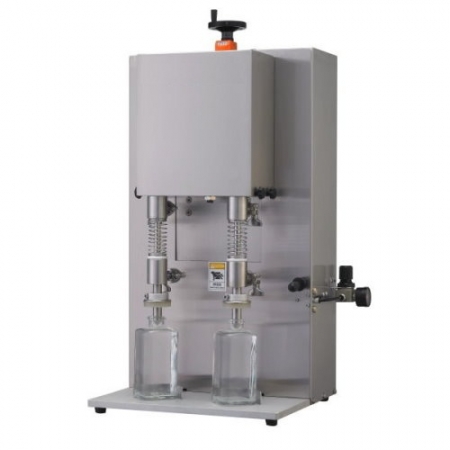

Tabletop Overflow Filling Machine Model No.: FL-120

Tabletop Peristaltic Pump Liquid Filling Machine FT-100 is the best system to avoid contamination, product is only in contact with the medically approved tubing and the nozzle, against cross contamination and easy cleaning. Without having to change anything but the dimension of the tubing in use. The target market is small to medium-sized batch production that requires flexibility, high precision and efficiency.


FEATURES:
·         2 copies of overflow filling module
·         Active pumping system
·         Filling accuracy： +/-1%
·         Pneumatic index system, bottle positioning adjustment
·         Shut-off nozzle
·         Overfill return
·         Frame and main component are made by s/s SUS#304 and ion anodized aluminum
·         Material meet GMP regulation
·         Water Proof
·         Alcohol applicable
·         3.5L Stainless Product Hopper (Customized Volume Hopper available)


OPTIONS:
·         ( Gear Pump) (Engine-oil Pump)
·         No bottle no fill
·         High-end servo motor / DC brushless Motors / high efficent filling
·         Diving nozzle to prevent foaming and to eliminate bubble
·         Pushing-out Dripping tray, no spilling
·         Each nozzle equip with individual pump
·         Index system for exactly bottle positioning without bottle jam
·         Pneumatic shut-off nozzle, no leaking concern
·         PLC control and HMI Operation
·         Memory set
·         With emergency button and three-color alarm indicator
·         Made of stainless steel, meets cGMP requirement


SPECIFICATIONS:
·         Filling Range：300~3000ml
·         Speed：10~60 bottles/ Min
·         Filling Accuracy：0.5%~1%
·         Power Requirement：No Electricity required
·         Air Consumption：150L/MIN , 5-7KG/CM2
·         Bottle Size：Diameter 20~50mm, Height 50~260mm
·         Machine Dimensions：(L)343mm (W)862mm (H)211mm
