T93P
Item No.: | Cam action |
Supplier Details
Country: Taiwan
City: CHANGHUA
Address: NO.103, XINGONG 1ST RD., BEIDOU TOWNSHIP, CHANGHUA COUNTY 521, TAIWAN(R.O.C)
TEL: +886-4-8877610
Fax: +886-4-8877087
Online Showroom:
1 Products
T93P

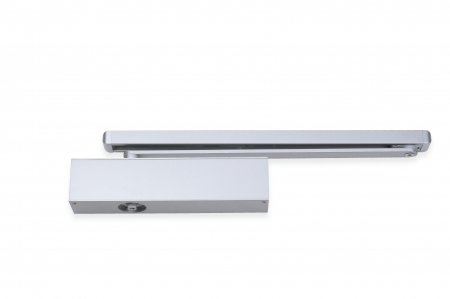

EN Standard Door Closer - Cam Action System
Product Features:
Adjustable power size 2~5
Adjustable closing & latching speed
Thermo-constant valve
Adjustable back check
Adjustable delay action
Surface mount
Cam action
Track arm mechanism
Power size 2~5
Max. Door width (mm) 1250
Max. Opening Angle 180
Application Ranges:
B type: Door mount pull side & transom mount push side
G type: Door mount push side & transom mount pull side
Single-action door
Non-handed installation
Installation:
Finishes:
Anodized aluminum for door closer body and track rail as standard
Painted – silver, brown, gold, black, white & other RAL colors upon request & discussion
Plating(for cover only)- US32D & other US finish code colors upon request & discussion
Accessories:
Track arm
Cover
Mounting plate
Hold open device
Cushion limit stay
Dimensions:
