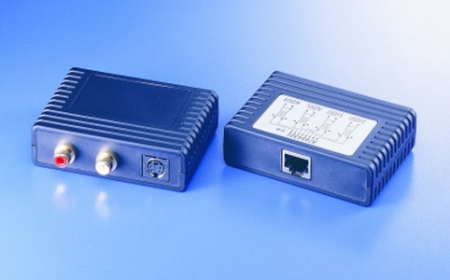

The S-Video/Audio Balun allows a single S-Video/Audio signal to be transmitted via unshielded twisted pair (UTP) cable up to 1000 ft (305m) in a point-to-point connection.
‧Specification
1. Bandwidth:
  Video: DC 6MHz
  Audio: 105 Hz to 28 KHz
2. Impedance
  S-Video: 75 ohm
  Audio: 600 ohm
3. Max. Input: 1.1 Vp-p
4. Insertion Loss
  S-Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
5. Return Loss
  S-Video: Better than 15 dB over the frequency range
  Audio: N/A
6. Common Mode Rejection
  S-Video: Greater than 40 dB over the frequency range
  Audio: N/A
7. Max. Distance - Cat.5 UTP or better: S-Video 1000 feet (305m)
  Max. Distance – Cat.5 UTP or better: Audio 5000 feet (1525m)
8. Pin Configuration (RJ45)
  Audio 1: pins 1&2
  Audio 2: pins 3&6
  S-Video Luma: pins 7&8
  S-Video Chroma: pins 4&5
9. Cable - UTP: 24AWG or lower solid copper twisted pair wire
  Impedance: 100 ohms at 1 MHz
  Maximum capacitance: 20 pf/ft
  Attenuation: 6.6 dB/1000 ft at 1 MHz
10. Connectors: 4-pin Mini DIN, two RCA audio jacks and one RJ45
11. Temperature
   Operating: 0 to 55°C
   Storage: -20 to 85°C
   Humidity: up to 95%
12. Enclosure: Fire retardant plastic
13. Dimensions: 82x58x25mm
