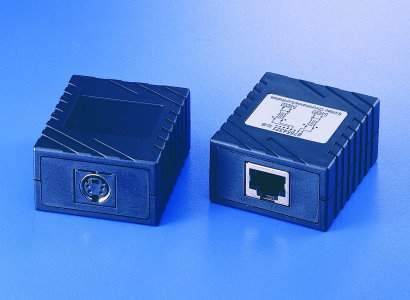

The S-Video Balun allows a single S-Video signal to be transmitted via unshielded twisted pair (UTP) cable up to 1000ft (305m) in a point-to-point connection. Used in pairs, the S-Video Balun eliminates costly and bulky S-Video cable, allowing S-Video equipment to be connected or moved to any convenient modular outlet. Some of the applications are classroom video distribution, commercial and hospital video training, video conferencing, and video kiosks. ‧Specification 1. Bandwidth: DC to 6 MHz 2. Impedance: 75 ohm 3. Max. Input: 1.1 Vp-p 4. Insertion Loss: Less than 2 dB per pair over the frequency range from DC to 6 MHz 5. Return Loss: Better than 15 dB over the frequency range 6. Common Mode Rejection: Greater than 40 dB over the frequency range 7. Max. Distance: Cat.5 or better - 1000ft (305m) 8. Cable – UTP: 24AWG or lower solid copper twisted pair wire   Impedance: 100 ohm at 1 MHz   Maximum capacitance: 20 pf/ft   Attenuation: 6.6 dB/1000ft at 1 MHz 9. Connectors: One 4-pin Mini DIN and one RJ45 10. Pin Configuration (Reverse Polarity Sensitive)    S-Video Luma: pins 7&8    S-Video Chroma: pins 4&5 11. Temperature    Operating: 0 to 55°C    Storage: -20 to 85°C    Humidity: up to 95% 12. Dimensions: 49.2x43x25mm
