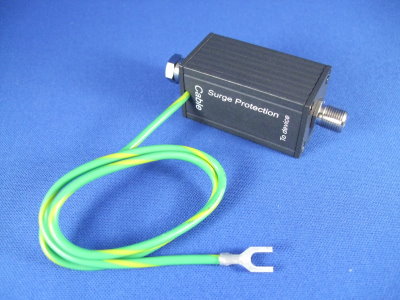

Surge Protector Video Surge Protector "F" Type
Item No.: | 03-S101-00 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY 251
Address: 1FL., NO.69-6, SEC.2, CHUNG CHENG E. RD., DANSHUI DIST., NEW TAIPEI CITY 251, TAIWAN (R.O.C.)
TEL: +886-2-28091533
Fax: +886-2-28091306

Online Showroom:
81 Products
Feature:
1.Performs a different function than grounding requirements.
2.Protects equipment from high voltage surges from nearby lightning strikes.
3.Two stage protection :under 1ns-90V , over 10ns-12V.
4.Wide range of applicstions:CCTV/CATV system , Antenna of Television , FM receivers , video camera , monitors , multiplexers & Quad processor , VCR...etc.
Specification:
1.F male to F female , Hi Frequency for both CCTV and CATV use
2.F COON , MALE SOLDER TYPE
3.Normal Resistance Across Coax:10,000 M ohm
4.Surge Resistance Approx:0 ohm
5.BAND PASS:0~1 GHZ
6.Power Passing Capability 130V AC/DC , 65 Vrms at 10AMPs
7.Insertion Loss:Less than 0.2dB
8.Return Loss (75 ohms):16dB
