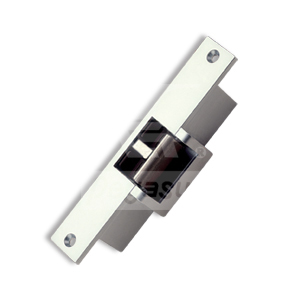

strike lock pair with mortise type dead bolt
| Item No.: | PGS-703 , PGS-704 |
Supplier Details
Country: Taiwan
State: Taiwan
City: New Taipei City
Address: 5F., No.738, Chung-Cheng Rd., Chung-Ho District
TEL: +886-2-82280198
Fax: +886-2-82280191
Online Showroom:
7 Products
Product Description
Operation Pair with mortise type dead bolt mechanical lock or cylindrical lock.
Could be continuously energized.
With door monitoring switch.
Fail secured type(PGS-703) or Fail safe type(PGS-704).
For heavy duty door.
Application: For aluminum, steel, wooden or brass door .
Specifications
Lock size (mm): 150(L) x 25(W) x 32(D) Approx. weight: 410g Nominal voltage: DC12V Voltage tolerance:20% Temp. range: -20C ~ 70C Power consumption:1.5W Pair with MK-738 mortise type dead bolt mechanical lock
Material: Zinc alloyPGS-703 Standby current: 0mA Working current:120mA Fail secured type(Released as energized) PGS-704 Standby current:120mA Working current:0mA Fail safe type
We reserve the right to change the specification without notice or obligation!
