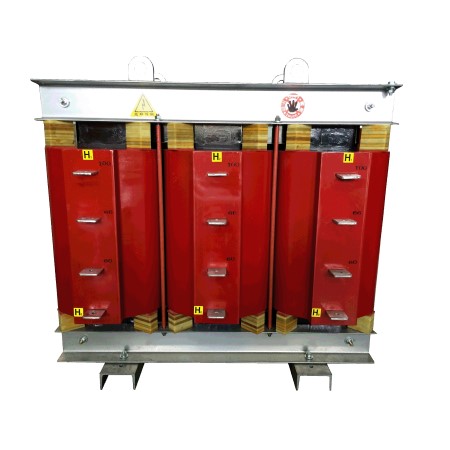

Compensator Starting - 7-4

Compensator Starting

Item No.: 7-4
Supplier Details
Country: Taiwan
City: Taoyuan City 330
Address: No.18, Ln. 50, Daren Rd., Taoyuan Dist.
TEL: +886-3-3639519
Fax: +--
Online Showroom: 26 Products
Compensator   Specification
  1. Number of phases: three phase
  2. Frequency: 50Hz or 60Hz
  3. Material: copper-copper
  4. Rated starting time: 60, 90, 180 seconds
  5. Tap type (standard tap) 50% -60% -80% (full pressure start is 100%)
  6. Choice of rated time:
    Rated time ≦ (starting time of the motor) X number of continuous starts
    (Note: continuous start is limited to 2 times)
  7. Starting current and torque comparison

    Note:(1) S: starting current, Ts: starting torque
           (2) Reactors have similar characteristics to resistors.
  8. Features: high mechanical strength, low noise, long life, high efficiency, good moisture resistance, smooth starting torque.
  9. Test: Before leaving the factory, the transformer performs in-plant testing and submits a test report..
  10. By order design
  11. Warranty: Store for 18 months after delivery or run for 12 months under normal use.
  12. Factory Certification: ISO 9001, ISO 14001, OHSAS 18001, UL 1561, TAF17025 Laboratory
  13. Delivery method: Domestic - truck up to the ground / Foreign – CIF
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Compensator Starting

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
