Resin Reactor - 7-1

Resin Reactor

Item No.: 7-1
Supplier Details
Country: Taiwan
City: Taoyuan City 330
Address: No.18, Ln. 50, Daren Rd., Taoyuan Dist.
TEL: +886-3-3639519
Fax: +--
Online Showroom: 26 Products

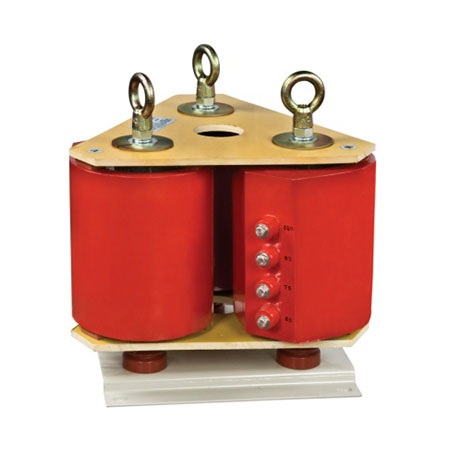

Cast Resin Starting Reactor   Specification
  1. According to the standard: IEC 60076-6
  2. Efficiency: Designed according to customer demand efficiency
  3. Voltage level: 36kV/24kV/12kV and below
  4. Number of phases: three phase
  5. Frequency: 50Hz or 60Hz
  6. Material: copper-copper
  7. Rated starting time: 60, 90, 180 seconds
  8. Tap type (standard tap) 50% -60% -80% (full pressure start is 100%)
  9. Choice of rated time:
    Rated time ≦ (starting time of the motor) X number of continuous starts
    (Note: continuous start is limited to 2 times)
  10. Starting current and torque comparison

    Note:(1) S: starting current, Ts: starting torque
           (2) Reactors have similar characteristics to resistors.
  11. Features: high mechanical strength, low noise, long life, high efficiency, good moisture resistance, smooth starting torque.
  12. Uses: limit motor starting current
  13. Test: Before leaving the factory, the transformer performs in-plant testing and submits a test report..
  14. Warranty: Store for 18 months after delivery or run for 12 months under normal use.
  15. Factory Certification: ISO 9001, ISO 14001, OHSAS 18001, UL 1561, TAF17025 Laboratory
  16. Delivery method: Domestic - truck up to the ground / Foreign – CIF
