Description:

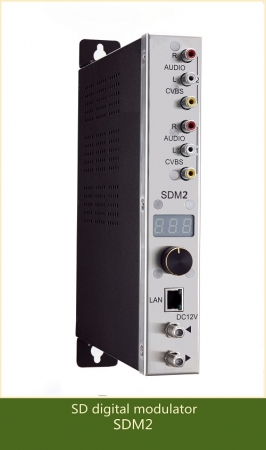

The SDM-2 is 2 composite video inputs standard definition DVB-T, DVB-C and J.83B COFDM modulator which provide COFDM RF signal in range of 50 to 860MHz. The SDM-2 is designed to achieve 576i/480i by using MPEG-2 low latency encoding engine and state-of-the-art COFDM modulation technologies. The SDM-2 is an excellent choice to transport video/audio signals from TV satellite receivers, surveillance camera or video/media players to a LCD TV or set-top box.

Product Features:
 Integration of Encoder, TS Mux and DVB-T, DVB-C or J.83B COFDM Modulator in one box.
 Multi-channel video interface, 2 composite video (CVBS)
 Multiple audio format compatibility including MPEG-1 Layer ll
 RF output, DVB-T, DVB-C and J.83B COFDM compatible.
 Frequency Range: 50 to 860MHz
 Programmable PMT/Video/Audio/PCR PID
 Programmable Network ID, Network Name, Service Name, Private Data Specifier and Logical Channel Number
 User friendly configuration of RF frequency via Knob and remote Web server control by LAN

Specification:
Model Name SDM-2
Video
Program Number 2
Input Format CVBS, component video (Option)
Encoding Format MPEG-2 Video (ISO/IEC 13818-2)
MPEG2 MP@ML
Video Resolutions 576i/480i
Connector RCA(75 Ohm)
Audio
Channel Number 2
Input Format Stereo L/R channel
Encoding Format MPEG-1 Audio Layer ll(ISO/IEC11172-3)
Connector RCA(10K Ohm)
Stream
PID Setting PMT/Video/Audio/PCR
Service Name 15 Alpha numeric characters
Network Information Network Name/Original Network ID/Network ID/
Private Data Specifier
Transport Stream ID 16 bits
Logical Channel Number Number up to 1023
System
Panel Button Operation Number LED Display, Knob
User Interface 10/100M IP Web Browser
General
Type DIN Rail
Dimensions 40mm(W)×245mm(D)×132mm(H)
Power source Power Feeding 12V/2A or Power Adapter
DC 12V(10.5 to 13.0V) SMPS(100-240 VAC/50Hz)
Power Consumption 25W
Certifications
  Bureau Veritas ADT
Modulator Mode 1 DVB-T
Standard DVB-T (ETSI EN 300 744)
Bandwidth 6/7/8 MHz
Carriers 2K/8K
Constellation 16QAM/64QAM/QPSK
Guard Interval 1/4, 1/8, 1/16, 1/32
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Frequency Range 50~860MHz
Output Level 75~90dBuV
MER >40dB (Typical)
Carrier 1
Modulator Mode 2 DVB-C J.83A/C QAM
Standard DVB-C(ETS 300 429)
Bandwidth 6/7/8 MHz
Constellation QPSK/16QAM/64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Frequency Range 50~860MHz
Output Level 75~90dBuV
MER >40dB (Typical)
Modulator Mode 3 DVB-C J.83B QAM
Standard ITU-T J.83 Annex B, DVB-C (ETS 300 429)
Bandwidth 6MHz
Roll-off Factor 0.12/0.18
QAM Mapper 64/256QAM
Symbol Rate Up to 5.361 MSymbol/s
Frequency Range 50~860MHz
Output Level 75~90dBuV
MER >40dB (Typical)
※ Note: Specifications are subject to change without notice.
