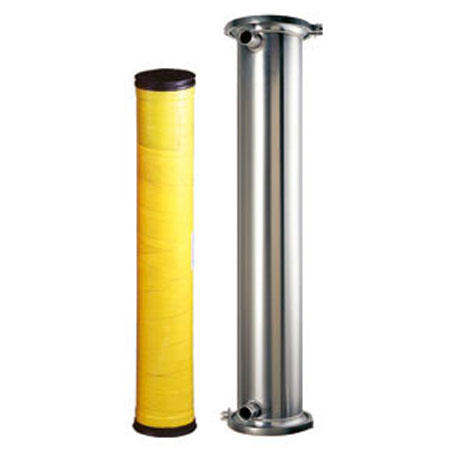

Stainless Steel Vessel
Item No.: | 40/80 |

Description
Stainless Steel Membrane Pressure Vessels enhance system appearance and allow you to take full advantage of the membrane capability. These type of vessel has a smooth and sleek look and are offered in both side and end entry styles. Stainless steel is not affected by ultraviolet rays and is lighter and more durable than FRP housings. Equivalent in operating pressure ratings to FRP housings (300psi), ROTEK Stainless steel housings will not warp, crack or weep also a perfect fit for all male style membrane elements. Housings are sold complete with end plugs, end clamps and o-rings. ROTEK Stainless Steel Membrane Housings accommodate any make of 4-inch nominal diameter spiral wound elements with a 3/4" diameter male product tube. Membrane interconnectors are sold separately.
Configuration
U-pin Style, End Entry
Specifications
Maximum Operating Pressure: 300 PSI (20 Bar)
Materials: Stainless Steel, High Polished, PVC End Plugs, SS U-Pins
SS membrane housing dimension
Stainless Steel Membrane Vessel RO 40 series | ||||
Model | A | B | C | D |
40-21 | 102 | 572 | 123 | 1/2 |
40-40 | 102 | 1052 | 123 | 1/2 |
40-80 | 102 | 2072 | 123 | 1/2 |
Stainless Steel Membrane Vessel RO 80 series | ||||||
Model | A | B | C | D | E | F |
80-40 | 204 | 1362 | 1194 | 258 | 1」 | 1,1/2」 |
80-80 | 204 | 2378 | 2210 | 258 | 1」 | 1,1/2」 |
80-120 | 204 | 3388 | 3220 | 258 | 1」 | 1,1/2」 |
80-160 | 204 | 4410 | 4242 | 258 | 1,1/2」 | 2」 |
80-200 | 204 | 5246 | 5258 | 258 | 1,1/2」 | 2」 |
Physical Properties
Stainless Steel Membrane Vessel RO 40 / 80 series | |
Temperature | -5---90 C |
Max pressure | 2.0-2.5 Mpa |
Operation pressure | 1.0-1.5Mpa |
Feed mode | End port entry( 4 inch) Side port entry( 8 inch) |
Thickness | 1.5mm( 4 inch); 3 mm( 8 inch) |
Feed& Concentrate | 3/4" ( 4inch),1 1/2"( 8 inch) |
Permeate | 1/2"( 4 inch),1"( 8 inch) |
Materials of Construction
Stainless Steel Membrane Vessel RO 40 / 80 series | |
End cap | ABS ( 4 inch);SS304 or SS316L( 8 inch) |
Clamp | SS304( 4 inch);SS304 or SS316L( 8 inch) |
Cap screws | SS304( 4 inch);SS304 or SS316L( 8 inch) |
Support Staps | SS304 |
Mounting pads | Rubber |
O-ring | EPDM |
Housing body | SS304/SS316L |
Pemeate plug | ABS |
SS Membrane Housing Structure
A. 4 inch series
B. 8 inch series
