Stainless Steel Filter
| Item No.: | Stainless Steel Filter Housing_1 |
Supplier Details
Country: Taiwan
City: Taiwan(R.O.C.)
Address: No. 255, ZhongZun St, Luchu Dist, Taoyuan City, 338
TEL: +886-3-3541071
Fax: +886-3-3541075
Online Showroom:
69 Products

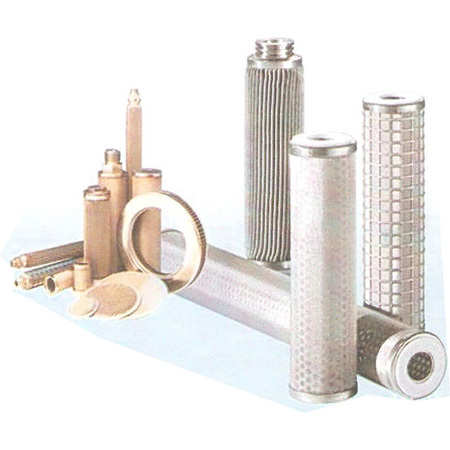

Stainless Steel Filter
Stainless Steel filter elements, made by strictly selected stainless steel material, capable of withstanding pressures up to 1MPa and temperatures up to 750℃, are compatible with most chemicals and can be cleaned and reused.
This product can be used in high temperature, high pressure, high or low PH environment, high corrosion, high-viscosity liquids, liquids containing rigid particles
Characteristics:
We also offer a wide range of high quality standard products and custom products.
Specification:
Core diameter:
28mm, 30mm
Outside diameter:
60mm, 63mm, 65mm, 70mm
Nominal rating:
normal 5, 10, 25, 50, 80, 100, 140, 200, 250, 300, 400, 500, 1000 micron
Length:
250mm, 500mm, 507mm, 750mm, 762mm
Recommended maximum differential pressure:
1 MPa =10.19716kg/cm2
Maximum operating temperature:
750℃
Maximum flow rate:
4500 L/H (the 250mm filter sample，differential pressure:0.015Mpa)
Typical application:
Stainless Steel filter elements, made by strictly selected stainless steel material, capable of withstanding pressures up to 1MPa and temperatures up to 750℃, are compatible with most chemicals and can be cleaned and reused.
This product can be used in high temperature, high pressure, high or low PH environment, high corrosion, high-viscosity liquids, liquids containing rigid particles
Characteristics:
- Particularly suitable at high temperature, high or low PH, high corrosion, high pressure
- Particularly suitable for high-viscosity liquids, liquids containing rigid particles
- Mechanical cleaning, chemical cleaning, and the heated cleaning, without frequent replacement
We also offer a wide range of high quality standard products and custom products.
Specification:
Core diameter:
28mm, 30mm
Outside diameter:
60mm, 63mm, 65mm, 70mm
Nominal rating:
normal 5, 10, 25, 50, 80, 100, 140, 200, 250, 300, 400, 500, 1000 micron
Length:
250mm, 500mm, 507mm, 750mm, 762mm
Recommended maximum differential pressure:
1 MPa =10.19716kg/cm2
Maximum operating temperature:
750℃
Maximum flow rate:
4500 L/H (the 250mm filter sample，differential pressure:0.015Mpa)
Typical application:
- Petrochemical Process's high temp high press high viscosity fluid.
- Cogeneration plant heavy oil, catalyst, stream, polymer filter
- Corrosive fluids
- Metal cutting machining
