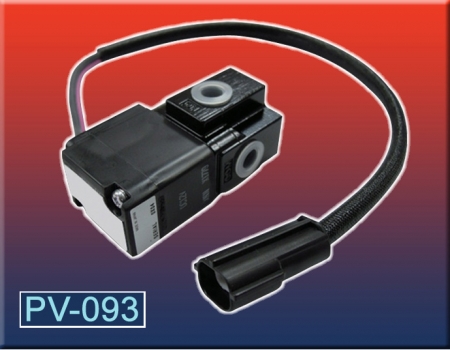

Speed Solenoid Valve for Boost Controller
Item No.: | PV-093 |
Supplier Details
Country: Taiwan
State: Taiwan
City: Tainan
Address: No. 329, Shing-Nan street
TEL: +886-6-2624080
Fax: +886-6-2624184
Online Showroom:
5 Products
Item no.
PV-093
Working fluid: Compressed air
Flow characteristics: 0.52 dm3/(S‧bar)
Max. working pressure differential: 0.15 MPa (1.5Kg)
Max. working pressure: 1.0 MPa (10.2Kg)
Withstanding pressure: 1.5 MPa (15.3 Kg)
Fluid temperature: -10~40°C (no freezing)
Ambient temperature: -20~40°C
Working conditions: No corrosive gas and flammable
Valve structure: Direct acting poppet structure
Valve seat leakage: ≦0.2 cc/min
Working fluid: Compressed air
Flow characteristics: 0.52 dm3/(S‧bar)
Max. working pressure differential: 0.15 MPa (1.5Kg)
Max. working pressure: 1.0 MPa (10.2Kg)
Withstanding pressure: 1.5 MPa (15.3 Kg)
Fluid temperature: -10~40°C (no freezing)
Ambient temperature: -20~40°C
Working conditions: No corrosive gas and flammable
Valve structure: Direct acting poppet structure
Valve seat leakage: ≦0.2 cc/min
