Spark S5
| Item No.: | Spark S5 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: NO.245, JHONGJHENG RD., SHULIN DIST., NEW TAIPEI CITY 238, TAIWAN (R.O.C.)
TEL: +886-2-26825650
Fax: +886-2-26825649
Online Showroom:
17 Products

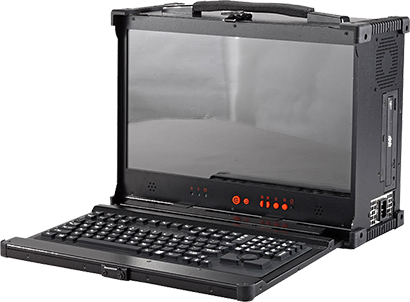

The high-performance portable computer designed for field and mobile applications
Spark-S5, the new & cost effective “Transportable Computer
Building Block” from SSI. Put it at the heart of your high-performance
portable computer solutions. Designed for field and mobile applications!
This portable computer chassis allows you to combine the latest in high-performance motherboards and add-in special function boards with a large display into a system that is compact and extremely rugged. It offers a cost effective solution to performance demanding portable computing applications.
The system’s integrated LCD offers a high-resolution flicker-free visual environment that rivals tradition CRT monitors. The Spark-S5 has the capability to accept a maximum of four expansion cards (motherboard dependent) along with one 2½" Disk Drives, one 5¼" open drive bay and one slim-type CD-ROM bay, offering expansion capability unmatched by any other portable system. The all-aluminium Spark-S5 chassis is the ideal solution for applications such as portable servers, network/communications testing, field data acquisition, remote field service, exploration, factory monitoring/automation, new technology demonstration, and much more.
Card Retention System
S5 has a double card retention system that holds individual add-on cards securely at two points, with an adjustable pressure mechanism ensuring that half and full-length cards are secure during transportation.
LCD Screens
Spark-S5 will offers 3-LCD solutions with sizes range from 15″ to 17″ and 17″ wide screen in the future.
Power Supply
Previous models of our trans-portable computers required special custom shape power supplies. With the Spark-S5 any standard desktop power supply will fit this chassis so you can meet the varying power requirements of different motherboards now and in the future.
Features
1. 4 slots Micro ATX form factor Rugged industrial build quality
2. Light weight aluminum chassis
3. Supports INTEL and AMD SOCKET type CPU
4. Integrated card retention stabilizers
5. Low profile membrane keyboard
6. Built-in glide point mouse pad
7. Built-in amplified speakers
This portable computer chassis allows you to combine the latest in high-performance motherboards and add-in special function boards with a large display into a system that is compact and extremely rugged. It offers a cost effective solution to performance demanding portable computing applications.
The system’s integrated LCD offers a high-resolution flicker-free visual environment that rivals tradition CRT monitors. The Spark-S5 has the capability to accept a maximum of four expansion cards (motherboard dependent) along with one 2½" Disk Drives, one 5¼" open drive bay and one slim-type CD-ROM bay, offering expansion capability unmatched by any other portable system. The all-aluminium Spark-S5 chassis is the ideal solution for applications such as portable servers, network/communications testing, field data acquisition, remote field service, exploration, factory monitoring/automation, new technology demonstration, and much more.
Card Retention System
S5 has a double card retention system that holds individual add-on cards securely at two points, with an adjustable pressure mechanism ensuring that half and full-length cards are secure during transportation.
LCD Screens
Spark-S5 will offers 3-LCD solutions with sizes range from 15″ to 17″ and 17″ wide screen in the future.
Power Supply
Previous models of our trans-portable computers required special custom shape power supplies. With the Spark-S5 any standard desktop power supply will fit this chassis so you can meet the varying power requirements of different motherboards now and in the future.
Features
1. 4 slots Micro ATX form factor Rugged industrial build quality
2. Light weight aluminum chassis
3. Supports INTEL and AMD SOCKET type CPU
4. Integrated card retention stabilizers
5. Low profile membrane keyboard
6. Built-in glide point mouse pad
7. Built-in amplified speakers
