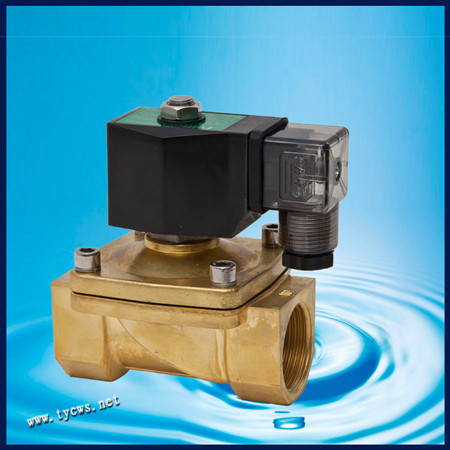

Solenoid Valve for Water (AC 220V)
| Item No.: | 2W-250-G1 |
Supplier Details
Country: China
State: Guangdong
City: Guangzhou
Address: Unit 3008, No.138, Helong Rd, Jiahe St, Baiyun Dec, Guangzhou, China
TEL: +0086-20-86686623
Fax: +0086-20-37415270
Online Showroom:
30 Products
Electromagnetic valve is mainly used to adjust the medium industrial control system, flow direction, speed and other parameters. The electromagnetic valve can meet the different circuits to achieve the desires control, and control the accuracy and flexibility are guaranteed.
Production detail:
Technical parameters:
Model: 2 w250 to 25, 2 s250-25
Working medium: Air, water and oil
Working style: Straight acting
Style: Normally closed
Flow aperture; 25
CV value: 12
To take over the caliber: G1
Using the fluid viscosity: 20CTS(BELOW)
Use pressure: 0~0.5MPa(water). 0~0.5MPa(oil)
The maximum resistance pressure: 1MPa
Operating temperature range: 5~ + 80º C
Using voltage range: Plus or minus 10%
Body material: Brass (W), stainless steel(S)
Oil seal material: NBR or VITION
Working principle diagram
Production detail:
Technical parameters:
Model: 2 w250 to 25, 2 s250-25
Working medium: Air, water and oil
Working style: Straight acting
Style: Normally closed
Flow aperture; 25
CV value: 12
To take over the caliber: G1
Using the fluid viscosity: 20CTS(BELOW)
Use pressure: 0~0.5MPa(water). 0~0.5MPa(oil)
The maximum resistance pressure: 1MPa
Operating temperature range: 5~ + 80º C
Using voltage range: Plus or minus 10%
Body material: Brass (W), stainless steel(S)
Oil seal material: NBR or VITION
Working principle diagram
