Solar Panel Mounting Rack - SUNUP G/R/RF

Solar Panel Mounting Rack

Item No.: SUNUP G/R/RF
Supplier Details
Country: Taiwan
City: Tainan City
Address: No,168 Yongkehuan Rd.,Yongkang Dist.
TEL: +886-06-2022202
Fax: +886-06-2012520
Online Showroom: 41 Products
Relation Product – Solar Mounting Rack / Fixture

SUNUP-G & SUNUP-R has the features of high compatibility with any module, extremely durable application, quick and convenient assembly, and complete service and warranty. Professional design and mass production bring price advantage, and further, cut down investment cost for customers.

To compare with Galvanized Steel Mounting Rack, the labor assembly cost can be reduced 50%, the working schedule cost can be reduced 30% and total material cost and transportation cost can be reduced 20% for using HENGS Aluminum Mounting Rack

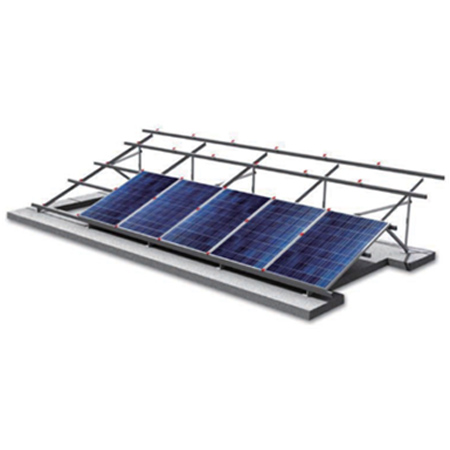

SUNUP-G-Mounted on ground or top floor flat
SUNUP-R-Mounted on tiled rooftop, wavy steel rooftop, and slat rooftop



Positive Pressure

P=139Kg/m2

Material

Aluminum-alloy 6063-T5

Negative Pressure

P=-144 Kg/ m2

External treatment

Anodized treatment7μ+Acrylic coating

Maximum Axial Force

Pmax=142.75kg

Screw

304 # stainless steel screw

Safe Load Limit

500kg

Strength of Wind Resistance

max. 55 m/s (Authenticated by registered structure engineer)

Maximum Shear

420kg

Assembly Efficiency

1kW = 1 hourly performance per technician(based on 240 PV module

Coefficient Of Linear Expansion

2.16x10-5

Weight

Sunup-G 18kg / kwSunup-R 15kg / kw

Warranty

5 years

Suitable Latitude

045





■ Solar Mounting Fixture- SUNUP-RF


  SUNUP-RF is fix the Solar Panel on Metal Corrugated Roofing Sheet directly, economical type and
  Various size for option

  SUNUP-RF-Mounted on Metal Corrugated Roofing Sheet

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Solar Panel Mounting Rack

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
