Solar Street Light
| Item No.: | 4-2 |
Supplier Details
Country: Taiwan
City: Tainan City 702
Address: 2F., No. 7-1, Ln. 3, Xinhe 1st Rd., South Dist.
TEL: +886-6-2637188
Fax: +886-2-66021277
Online Showroom:
36 Products

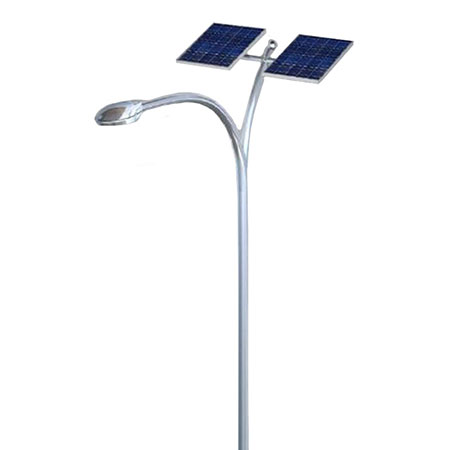

Solar Street Lights Solar Lights 170W DC Quality manufacturer in Taiwan
LED Solar Street Lights
Eliminate the trouble of wiring and take advantage of the unlimited sunlight, power your street light with
solar energy. Automatic light on after sunset and pre-program light on time. It is easy, energy saving and low maintenance.
Model:
1.Cover Material: Aluminum Alloy
2.Light: Ceramic Metal Halide Lamp 70W*1
3.Transparent Cover: Tempered glass, High temperature resistance, Anti-ram
4.Protection Degree: IP65
5.Luminous Flux: 3200 lm
Light Pole:
1.Shaft using ∮ = 4 "x4.2t over galvanized steel pole
2.Base plate made of 20T steel plate
3.Solar panel mounting rack made of angle steel 50x50-4t
4.Control box made using SS41P-1.5t galvanized steel
Foundation Screw:
Ψ25x 1000 Foundation Screw
Power Control;
1.Power Collection System: Solar Module 170W x1pc, Vmp=18V, Imp=9.44A, Dimension 668 x 1330 x 35mm
2.Power Storage：Silicon Power Battery 12V, 80AH*2pcs
3.Charge Controller：
oAutomatic turn on when sunset
oSelf setting light on time
oBattery over charging and discharging protection
4.Light on time: Automatically daily switch on light when sunset, for 6 hours
Size
1.Total pole height - 6M
2.Lamp mounting height 5M
Others
1.The surface of the poles have been dealing with hot-dip galvanizing, the appearance is dealt with powder coating technology, and color should be ordered separately.
2.Solar panels should be mounted facing south for the direction of the sun and should avoid shading.
3.The product warranty: 1 year.
