SO DIMM DDR4 Socket - 124B-150A00

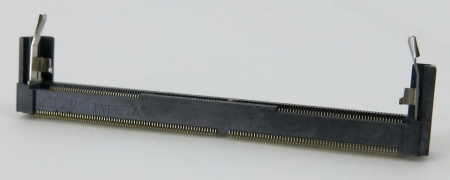

SO DIMM DDR4 Socket

Item No.: 124B-150A00
Supplier Details
ATTEND Technology Inc.
Country: Taiwan
City: New Taipei City 221
Address: 10F-6, No.81, Sec. 1,Xintai 5th Rd., Xizhi-Dist.,
TEL: +886-02-26987028
Fax: +--
Online Showroom: 5 Products
SO DIMM DDR4 Socket, 2V, 260Pin, 14.7H, Normal Type ELECTRICAL Current Rating: 0.5A per pin Voltage Rating: 25V AC/DC Contact Resistance: 55mΩ Insulation Resistance: 500MΩ Dielectric Withstanding Voltage: 300VAC MECHANICAL Durability: 25 Cycle Latch Retention Force: 8N/Pos. Min ENVIRONMENTAL Operating temperature range: -40℃~+85℃ Storage temperature range: -40℃~+85℃ SOLDER ABILITY Recommended IR Reflow Temperature: 260℃ 10Sec
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

SO DIMM DDR4 Socket

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
