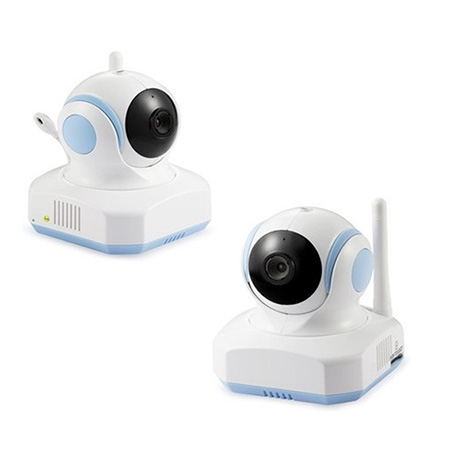

IP Camera Gateway
| Item No.: | SHDS8301AG-RF00 |
Supplier Details
Country: Taiwan
City: New Taipei City 23144
Address: 7F-7, No.94, Baozhong Road, Xindian District
TEL: +886-2-29160823
Fax: +886-2-29160841
Online Showroom:
63 Products
Smart Home RF series _ IP CAM with Gateway
RF Feature
Integrate 2.4Ghz RF technique with RF Gateway feature
ZRF frequence: 2.4Ghz.
Channels: 6
Max TX power: 6dBm
Sensitivity: -97dbM2.
RF Feature
Integrate 2.4Ghz RF technique with RF Gateway feature
ZRF frequence: 2.4Ghz.
Channels: 6
Max TX power: 6dBm
Sensitivity: -97dbM2.
- Sensor: 1.0 Mega Pixels CMOS Sensor
Active Pixel Array: 1280*720 - Microphone: Omni-directional; -38+/-3dB
- I/O Connector: 12V DC-in, Audio jack, micro SD slot, Antenna Connector
- Storage: micro SD slot, supports Micro SDHC Card, class 6 or above, up to 32GB
- Power Consumption
Input: 100-240VAC, 50/60Hz ,0.3A
Output: 6VDC, 2A - Pan and Tile H:270deg, V:120deg
- Chipset Model: Realtek WLAN Chip, Wi-Fi 802.11n (Build-in)
- Speed of Data Rate: Up to 150Mbps high -speed wireless net Connections.
- Standard: 802.11b/g/n (802.11n as suggestion)
- Frequency Range and channels: Operates in 2.4 GHz frequency ISM bands
- Transmition: 1TX, 1RX
- Operation mode: WiFi AP Mode (Factory default)/ WiFi Client mode
- Security: Supports WEP, TKIP, AES, WPA and WPA
- Protocol:
Support DHCP/ manual setup for network IP address.
Support TCP/IP, UDP, HTTP, RTSP, RTP, P2P.
Support FTP and Email for event data access.
Support NTP or system time server. - Video Compress Codec:
Encoder: H.264
Decoder: H.264, MJPEG - Resolution:
HD720p/VGA/QVGA
Supports 2 Channel H.264 video stream out in same time, and based on different resolution: Ch1 as RTSP stream, and Ch2 as P2P stream for smartphone or Pad devices. - Ch1 and Ch2 are independent video stream.
- Frame Rate:
(RTSP stream) 1~30fps
(P2P Stream) 1~30 fps - Motion Detection: Supported, user can get alarm message via APPS of Smartphone.
- Audio Compress Codec
RTSP: G.711, P2P: Speex 19Kbps - Function of P2P
(1) Point to Point (P2P) connection without complex setting.
(2) Use mobile phone to monitor IP Camera at home or outside.
(3) Client or device will automatically connect to the most suitable server which with lower loading or less delay.
(4) P2P Technology for no IP Setting.
(5) Support P2P to transmit QVGA H.264 5~30fps. Getting a good and smooth image quality.
