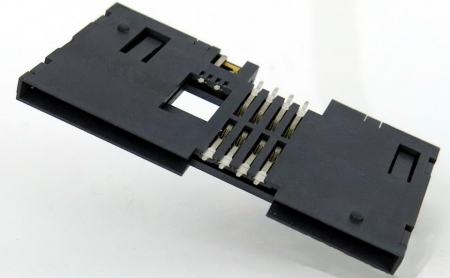

Smart Card Socket - 116G-SBO0

Smart Card Socket

Item No.: 116G-SBO0
Supplier Details
ATTEND Technology Inc.
Country: Taiwan
City: New Taipei City 221
Address: 10F-6, No.81, Sec. 1,Xintai 5th Rd., Xizhi-Dist.,
TEL: +886-02-26987028
Fax: +--
Online Showroom: 5 Products
Smart Card Socket SPECIFICATION: ELECTRICAL Rating: 30V 1A max. Contact Resistance: 100mΩ max. Insulation Resistance: 1000MΩ Dielectric Withstanding Voltage: 500VAC MECHANICAL Insertion Depth: 31.1mm Card Thickness: 0.7mm to 0.8mm ENVIRONMENTAL Operating temperature range: -40°C~+85°C Storage temperature range: -40°C~+85°C SOLDER ABILITY Recommended IR Reflow(Wave Soldering) Temperature: 260°C
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Smart Card Socket

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
