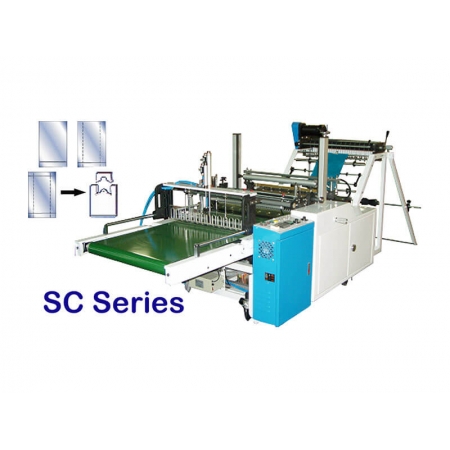

Single Lane Bottom Sealing Bag Machine - SC Series

Single Lane Bottom Sealing Bag Machine

Item No.: SC Series
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Bottom Seal Bag Making Machine

MACHINE FEATURE:
  • Seal bar can be easily changed for shopping bags and plain bags.
  • Electronic clutch and brake ensure accurate bag cutting and sealing, deviation within 1mm.
  • Sensor controls input of film rolls, assuring perfect sealing line without tension.
  • Automatically stops if film is empty or stuck.
  • Print sensors guarantee the precision for printed bags. (Optional)

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size(Max.)
Line x W x L (mm)
Thickness
of film (mm)
Capacity
(cycle/min.)
Power
Required
Machine Size
L x W x H(M)
SERVO
TYPE
SC-700V 1x680x1200 0.008~0.15 30~160 6.9KW 3.8x1.55x1.49
SC-800V 1x780x1250 7.3KW 3.8x1.65x1.49
SC-1000V 1x980x1450 9.0KW 3.8x1.85x1.49
SC2-700V 1x680x1200
2x305x1200
30~160x2 7.4KW 3.8x1.55x1.49
SC2-800V 1x780x1250
2x355x1250
7.8KW 3.8x1.65x1.49
SC2-1000V 1x980x1450
2x455x1450
9.5KW 3.8x1.85x1.49
CLUTCH
&
BRAKE
TYPE
SC-700 1x680x1010 0.008~0.15  30~110 3.8KW 3.8x1.55x1.49
SC-800 1x780x1010 4.2KW 3.8x1.65x1.49
SC-1000 1x980x1010 30~105 4.4KW 3.8x1.85x1.49
SC2-700 1x680x1010
2x305x1010
30~110x2 4.3KW 3.8x1.55x1.49
SC2-800 1x780x1010
2x355x1010
30~105x2 4.7KW 3.8x1.65x1.49
SC2-1000 1x980x1010
2x455x1010
4.9KW 3.8x1.85x1.49
  • Specifications are subject to change without notice.
