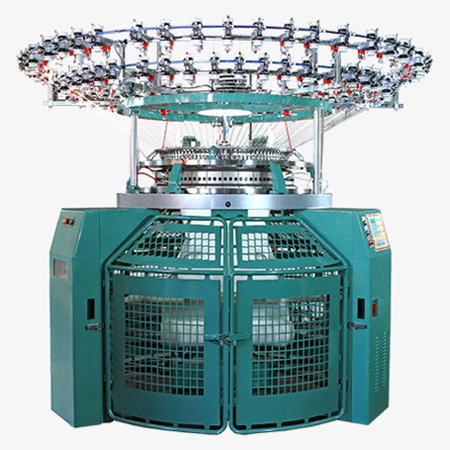

SD-3F Single jersey knitting machine is the Best Sales Model of Sunda machines.
From plain single jersey to fancy structured piqué fabrics, SD-3F is just that easy for the variety.
6 track cylinder cam box is available for more complicated designs.

Your best choice of versatile and economic single jersey knitting machine- SD-3F.

Features:
■ Four track cylinder cams: knit, tuck, and miss cams are available for various designs.
■ Vertical Yarn Carrier:
Tailor-made vertical yarn guide wheels can stablize yarn feed more smoothly. What’s more, it is perfect for 2 yarn or 3 yarn plating effect.
SD-3F yarn guide prevents the needle from damage while adding Lycra and reduce cotton fiber accumulation.

■ Simply change the needle and sinker guidance system, Inter-change single jersey knitting machine can convert to Terry, Velour, and Three-Thread Fleece.  SD-3F creates a best platform for you to make better profits.

Conversion Kit:



	SD-3F   30"X24GX90F	SD-FL   30"X20GX90F	SD-60   30"X24GX60F	SD-48   30"X24GX48F
Yarn Carrier & Ring		●	●	●
Sinker cam		●	●	●
Sinker		●	●	●
Cylinder cam		●	●	●
Cylinder cam box			●	●
Cylinder		●
Cam box Ring				●

Option:
■ Mesh cam: A combination of two feeder mesh cam is available for mesh fabrics.
■ Two-Track Sinker Guidance: Option for fine gauge
Double sinker butt guidance extends the life time of sinker.
It stabilizes the sinker movement, reduces friction between the sinker and the sinker cam, and thereby avoid the defective stripes / oil stripes on the fabrics.
■ Central Stitch Adjustment:
Central stitch adjustment can equip on the machine to adjust fabrics density and GSM rapidly, precisely, and easily.



Application:
■ Plain single jersey, Single pique, Double pique, Twill, Mesh, Spandex plating, 2 yarn plating, 3 yarn plating ,
2 yarn fleece, knitting denim,
■ Underwear, Sports wear, swim wear, Leisure, Industrial Textile, Home Textile, Medical Textile.

Specification:

Model	Cylinder Dia.	Gauge/ inch	Feeder/ inch
SD-3F	12"~46"	12G~48G	3F
SD-3.2F	12"~46"	12G~48G	3.2F
SD-3FS	28" ~38"	12G~48G	3/3.2/4F
SD-CG	12"~46"	5G~10G	1.2F~1.8F
SD-4F	12"~46"	12G~36G	4F
SD-5F	12"~46"	12~24G	5F

Machine Area:

Diameter	Net Weight (kgs)	Gross Weight (kgs)	Size of Wooden Case (cm)
16"~22"	1600	1800	200x168x200
24"~30"	2000	2200	220x210x207
32"~36"	2200	2400	220x220x207
38"~40"	2400	2600	250x220x207
