SIM card Conn. Push Push Type, H=1.5mm, SMT, 8 pin - SIMMP-P08XXBTSX-X

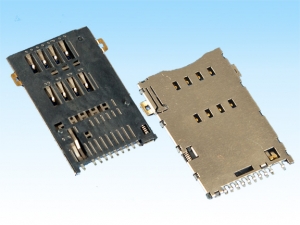

SIM card Conn. Push Push Type, H=1.5mm, SMT, 8 pin

Item No.: SIMMP-P08XXBTSX-X
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom: 17 Products


SIM card Conn. Push Push Type, H=1.5mm, SMT, 8 pins, normal open


Product Name:SIM card Conn. Push Push Type, H=1.5mm, SMT 8 Circuits, with pegs, normal open


Part No:SIMMP-P08 XX BTS X - X
                                          (1)         (2)  (3)
               (1): 05 : 5u” Gold plating
               (2): Package:  0 : TRAY
                                   1 : TAPE ON REEL
               (3): LOGO:   0: No
                                 1: Yes


Termination Interface: Surface mount
Ports: 1
Durability: 3,000 min


Net Weight: 1.5g
Packing:


     1.        Tape on reel: 800pcs/reel; 10reels/carton
     2.        Tray: 45pcs/tray; 63trays/carton


APPLICATION:
      1.        For SIM - Smart Card Use.


SPECIFICATION:
      1.      Contact resistance:
                       Contact: 100 mΩ Max.
                      Switch: 200 mΩ Max.
      2.      Insulation resistance: >1000 megaohms / 500 VDC
      3.      Withstanding Voltage: 500 V AC rms 1 minute
      4.      Operating temperature: -40℃ ~ 85℃

MATERIAL and FINISH:
      1.  Insulation material:High Temperature Plastic (UL 94V-0)
      2.  Contact material:Copper Alloy
      3.  Finish: Gold plating on contact area
      4.  Slide: Thermoplastic, UL 94-V0
      5.  Link: Stainless Steel
      6.  Spring: SWP Nickel plating overall
