Silicone Rubber Switch - RB18

Silicone Rubber Switch

Item No.: RB18
Supplier Details
Country: Taiwan
City: New Taipei City 235
Address: 2F., No.4, Ln. 348, Sec. 2, Zhongshan Rd., Zhonghe Dist.
TEL: +886-2-22494282
Fax: +886-2-22494359
Online Showroom: 32 Products

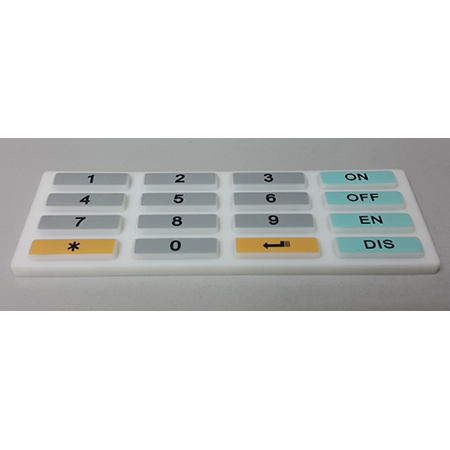

Control panel of access control sensor system
1. Material of the product is rubber
2. The main color of bottom white with gray, blue, orange and black text
3. Use a background color, four-color printing
4. The wear resistance is excellent and the printing on the surface won’t shed easily
5. Combine with metal dome for better tactile impression
6. To adhere with PCB
7. PU coating for preventing printing and graphics fall off

  Specifications

  Process: one ground, three colors printed, PU Coating

  Electrical

     -Maximum circuit rating: 5 mA 12VDC

     -Insulation resistance: 100 MΩ at 500V DC

     -Contact Bounce: < 10ms

     -Life expectancy: ≧1,000,000 times

  Mechanical

     -Actuation force: 180 to 450g (6 to 16 oz)

  Environmental

     -Operating temperature: -20℃ to +120℃

     -Storage temperature: -20℃ to +120℃



We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Silicone Rubber Switch

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
