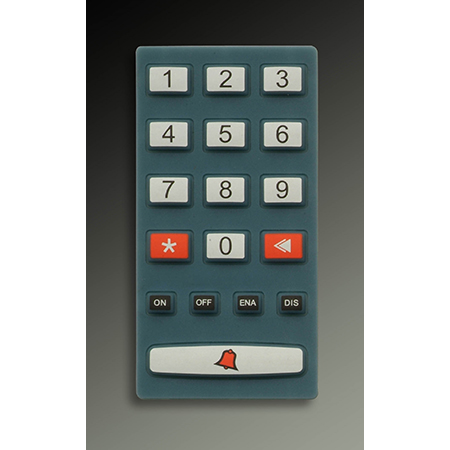

Elastomer Keypad - RB18

Elastomer Keypad

Item No.: RB18
Supplier Details
Country: Taiwan
City: New Taipei City 235
Address: 2F., No.4, Ln. 348, Sec. 2, Zhongshan Rd., Zhonghe Dist.
TEL: +886-2-22494282
Fax: +886-2-22494359
Online Showroom: 32 Products
The material of control panel of access control sensor system is rubber.
Green, white, orange and black are colors we have now. It can be combined with metal dome in order to increase better tactile impression, and then adhere to PCB. We also use PU coating to prevent printing and graphics fall off.
Email us if you would like to know more details.

  Specifications

  Process: one ground, three colors printed, PU coating

  Electrical

     -Maximum circuit rating: 5 mA 12VDC

     -Insulation resistance: 100 MΩ at 500V DC

     -Contact Bounce: < 10ms

     -Life expectancy: ≧1,000,000 times

  Mechanical

     -Actuation force: 180 to 450g (6 to 16 oz)

  Environmental

     -Operating temperature: -20℃ to +120℃

     -Storage temperature: -20℃ to +120℃



We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Elastomer Keypad

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
