RX-29 & RX-30

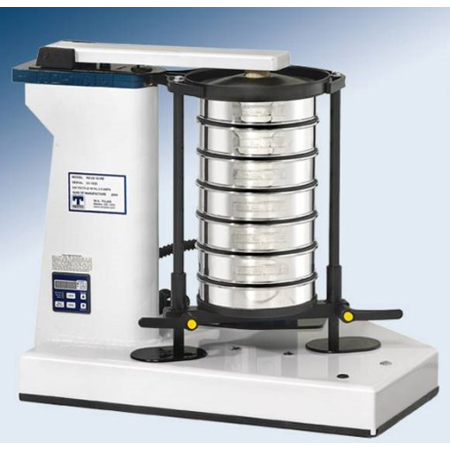

The W.S. TYLER® Ro-Tap® RX-29 for test sieves up to 203 mm diameter reproduces the circular and tapping motion of hand sieving but with an even mechanical action, W.S. TYLER® Ro-Tap® RX-30 for test sieves up to 305 mm diameter.

Suitable test sieves for your application
It depends on your application which test sieves should be used for sieve analysis with the W.S. TYLER® Ro-Tap® RX-29. It is suitable for up to 6 test sieves with full height or 13 half-height sieves and one sieve pan with a diameter of up to 203 mm (8”) or 200 mm, W.S. TYLER® Ro-Tap® RX-30. It is suitable for up to 5 test sieves with full height or 12 half-height sieves and one sieve pan with a diameter of up to 305 mm (12”) or 300 mm.


Most suitable machine for abrasive materials
-Enables sieving of agglomerating bulk materials.
-Prescribed in the FEPA-standard for abrasive industry.

Technical data for RX-30

Sieve diameters	300 mm, 305 mm (12")
Sample weight	approx. 6 kg
Operating voltage	230 Volt or 115 Volt, 50-60 Hertz
Timer	0-99 minutes
Taps per minute	150
Oscillations per minute	278
Drive	electric motor with worm gear
Sound emission	86 dBA
Weight	approx. 82 kg (without test sieves)
Dimensions	710 x 540 x 640 mm (B x T x H)
