Shunt Reactor Transformer - 6-2

Shunt Reactor Transformer

Item No.: 6-2
Supplier Details
Country: Taiwan
City: Taoyuan City 330
Address: No.18, Ln. 50, Daren Rd., Taoyuan Dist.
TEL: +886-3-3639519
Fax: +--
Online Showroom: 26 Products

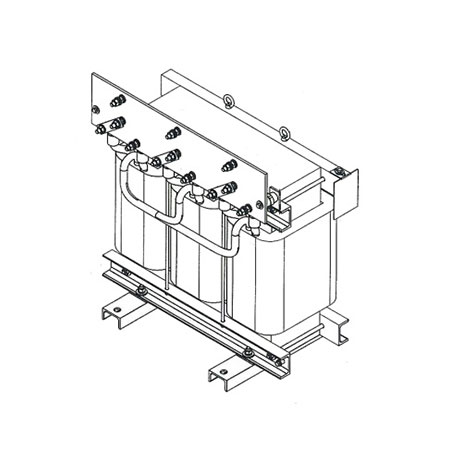

Dry Type Shunt Reactor
  1. According to standard: IEC60076 or JEC-2210
  2. Type:AN
  3. Number of phases: single phase or three phase
  4. Material: copper-copper
  5. Carton protection class:IP00
  6. Frequency:50/60Hz
  7. Capacity:below 1000kVA
  8. Uses: Compensate the phase-to-ground current of the line to stabilize the line voltage.
  9. Performance:by order design
  10. Test: Before leaving the factory, the transformer performs in-plant testing and submits a test report..
  11. Warranty: Store for 18 months after delivery or run for 12 months under normal use.
  12. Factory Certification: ISO 9001, ISO 14001, OHSAS 18001, UL 1561, TAF17025 Laboratory
  13. Delivery method: Domestic - truck up to the ground / Foreign – CIF
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Shunt Reactor Transformer

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
