Variable Shunt Reactor - 6-1

Variable Shunt Reactor

Item No.: 6-1
Supplier Details
Country: Taiwan
City: Taoyuan City 330
Address: No.18, Ln. 50, Daren Rd., Taoyuan Dist.
TEL: +886-3-3639519
Fax: +--
Online Showroom: 26 Products

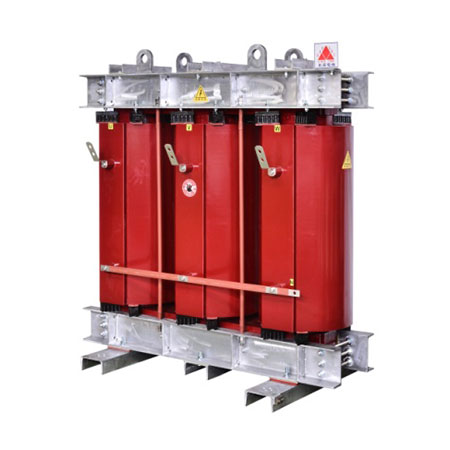

Cast Resin Shunt Reactor
  1. According to standard: IEC60076
  2. Type:AN
  3. Voltage level: 36kV or less
  4. Number of phases: single phase or three phase
  5. Material: copper-copper
  6. Carton protection class:IP00
  7. Frequency:50/60Hz
  8. Capacity:below 3000kVA
  9. Uses: Compensate the phase-to-ground current of the line to stabilize the line voltage.
  10. Performance:by order design
  11. Test: Before leaving the factory, the transformer performs in-plant testing and submits a test report..
  12. Warranty: Store for 18 months after delivery or run for 12 months under normal use.
  13. Factory Certification: ISO 9001, ISO 14001, OHSAS 18001, UL 1561, TAF17025 Laboratory
  14. Delivery method: Domestic - truck up to the ground / Foreign – CIF
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Variable Shunt Reactor

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
