Short 2U Server System
Item No.: | R226 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--
Online Showroom:
30 Products
This custom 2U chassis supports different motherboards with different PCI or PCIE riser cards. Ashinne designed and produced the flexible expansion slot modules including riser cards to fulfill the specification requirements. This system had been offered over 3 years via minor modifications to fit different generation motherboards.
Application: Industrial PC
Key Features:
2U short IPC system with flexible expansion slot module
Support different Micro ATX MB with different PCI or PCIE riser card
2 x 3.5“ hot-swappable HDD
Dust filter sponge on front panel
Flex ATX PSU
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 2U Rackmount with Micro ATX MB
Power Supply: Flex ATX PSU
Drive Capacity: 2 x Hot-Swappable 3.5" HDD

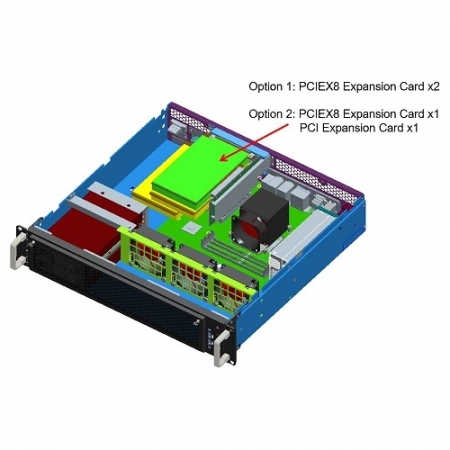

Expansion Slot: Option 1: PCIe x8 Expansion Card x2;Option 2: PCIe x8 Expansion Card x1 + PCI Expansion Card x1
Cooling Fan: 3 x 80*80*25mm Fan
LED Indicator: Power on, HDD
Button: Power, Reset
Dimension(DxWxH): 432 x 430 x 88mm
Application: Industrial PC
Key Features:
2U short IPC system with flexible expansion slot module
Support different Micro ATX MB with different PCI or PCIE riser card
2 x 3.5“ hot-swappable HDD
Dust filter sponge on front panel
Flex ATX PSU
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 2U Rackmount with Micro ATX MB
Power Supply: Flex ATX PSU
Drive Capacity: 2 x Hot-Swappable 3.5" HDD
Expansion Slot: Option 1: PCIe x8 Expansion Card x2;Option 2: PCIe x8 Expansion Card x1 + PCI Expansion Card x1
Cooling Fan: 3 x 80*80*25mm Fan
LED Indicator: Power on, HDD
Button: Power, Reset
Dimension(DxWxH): 432 x 430 x 88mm
