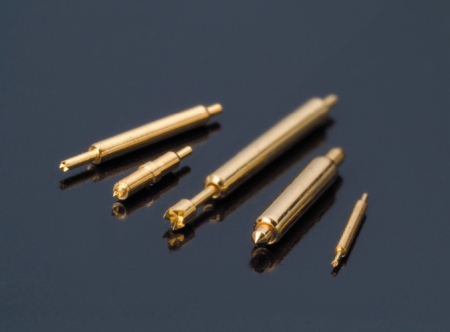

Semiconductor probe
Item No.: | SG031-DF-4.2 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: NO.432, SEC. 2, CHUNG SHAN RD., ZHONGHE DIST., NEW TAIPEI CITY 235, TAIWAN (R.O.C.)
TEL: +886-2-82213619
Fax: +--
Online Showroom:
6 Products
Specification:
1. Mechanical
Spring force @ Working Travel 32g @ 0.35mm
Full Travel 0.6mm
Operating Temperature -40~140 ℃
Life Span @ Working Travel 100K Cycles
2. Electrical
DC Resistance <100mΩ
Current Rating 2A
3. Material/Plating
Plunger A/B BeCu/Gold Plated
Barrel PhBr / Gold Plated
Spring SWP / Gold Plated
1. Mechanical
Spring force @ Working Travel 32g @ 0.35mm
Full Travel 0.6mm
Operating Temperature -40~140 ℃
Life Span @ Working Travel 100K Cycles
2. Electrical
DC Resistance <100mΩ
Current Rating 2A
3. Material/Plating
Plunger A/B BeCu/Gold Plated
Barrel PhBr / Gold Plated
Spring SWP / Gold Plated
