Semiconductor probe - DE080-FE-3.4

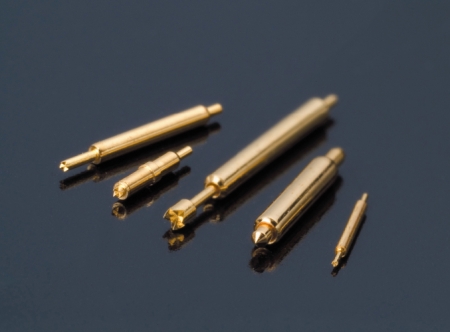

Semiconductor probe

Item No.: DE080-FE-3.4
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: NO.432, SEC. 2, CHUNG SHAN RD., ZHONGHE DIST., NEW TAIPEI CITY 235, TAIWAN (R.O.C.)
TEL: +886-2-82213619
Fax: +--
Online Showroom: 6 Products
Double Ended Socket
Specification:
1.Mechanical
   Spring force @ Working Travel 40g @ 0.6mm
    Full Travel 0.8mm Operating Temperature -40~140 ℃
    Life Span @ Working Travel 100K Cycles
 2 Electrical
     DC Resistance <50mΩ
     Current Rating 2A
3. Material/Plating
   Plunger A/B BeCu/Gold Plated
   Barrel PhBr / Gold Plated
   Spring SWP / Gold Plated

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Semiconductor probe

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
