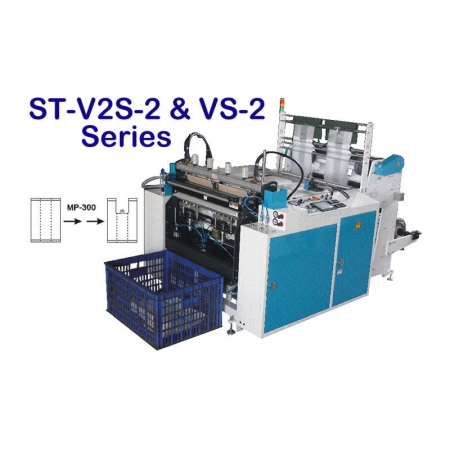

Semi Auto T Shirt Bag Machine
| Item No.: | ST-V2S-2 & ST-VS-2 Series |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
High Speed Semi-auto 2 Track Hot-cut T-Shirt Bag Making Machine with Air Tension control
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
MACHINE FEATURE:
- High speed operation. Capacity : 440 pcs/min. ( 2 lines )
- 2 sets servo system with 2 mark sensor, can produce 2 lines printed T-shirt bag.
- Turn-up Sealing bar design, easy to clean and maintain.
- Hot-cut sealing with 4 temperature controllers; the sealing keep high quality.
- Feed auto speed control by inverter and air tension control.
- Block or no film auto stop.
- Pre-connect device shorten the change of film.
SPECIFICATIONS: P.S. Customization could be available.
| Model | Bag Width line × W (max) |
Bag Length | Thickness of film | Capacity (pieces/min) |
| ST-800V2S-2 | 2 x 360 | 300~700 | 0.010~0.035 | Max. 500 (2 lines) |
| ST-1000V2S-2 | 2 x 460 | 300~700 | 0.010~0.035 | Max. 500 (2 lines) |
| ST-1200V2S-2 | 2 x 560 | 300~700 | 0.010~0.035 | Max. 500 (2 lines) |
| ST-800VS-2 | 2 x 360 | 300~700 | 0.010~0.035 | Max. 400 (2 lines) |
| ST-1000VS-2 | 2 x 460 | 300~700 | 0.010~0.035 | Max. 400 (2 lines) |
| ST-1200VS-2 | 2 x 560 | 300~700 | 0.010~0.035 | Max. 400 (2 lines) |
- Specifications are subject to change without notice.
