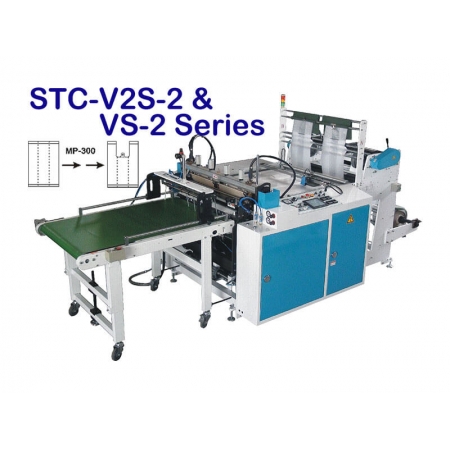

Semi Auto T Shirt Bag Machine With Conveyor - STC-V2S-2 & STC-VS-2 Series

Semi Auto T Shirt Bag Machine With Conveyor

Item No.: STC-V2S-2 & STC-VS-2 Series
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
High Speed Semi-auto 2 Track Hot-cut T-Shirt Bag Making Machine with Air Tension control & Conveyor

MACHINE FEATURE:
  • High speed operation. Capacity : 500 pcs/min. ( Type: STC-V2S-2 )
  • 2 sets servo system with 2 mark sensor, can produce 2 lines printed T-shirt bag.
  • Turn-up Sealing bar design make maintenance easy.
  • Hot-cut sealing with 4 temperature controllers ensure the sealing in high quality.
  • Feed auto speed control by inverter and air tension control.
  • Block or no film auto stop; no film pre-connect device make film change faster.

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag  Width
line × W (max)
Bag  Length Thickness of film Capacity
(pieces/min)
STC-800V2S-2 2 x 360 300~700 0.010~0.035 Max. 500 (2 lines)
STC-1000V2S-2 2 x 460 300~700 0.010~0.035 Max. 500 (2 lines)
STC-1200V2S-2 2 x 560 300~700 0.010~0.035 Max. 500 (2 lines)
STC-800VS-2 2 x 360 300~700 0.010~0.035 Max. 400 (2 lines)
STC-1000VS-2 2 x 460 300~700 0.010~0.035 Max. 400 (2 lines)
STC-1200VS-2 2 x 560 300~700 0.010~0.035 Max. 400 (2 lines)
  • Specifications are subject to change without notice.
