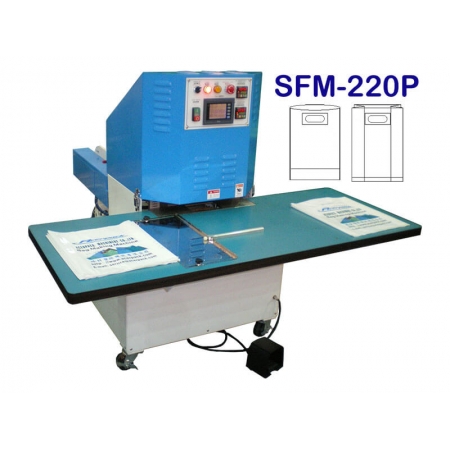

Semi Auto Shopping Bag Machine
Item No.: | SFM-220P |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
SEMI-AUTOMATIC PATCH HANDLE
SHOPPING BAG MAKING MACHINE
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
SHOPPING BAG MAKING MACHINE
MACHINE FEATURE:
- Adoption of HMI for easy control and clear display of all functions as well as machine status.
- The function include automatic, one-time cycle, manual operation, and counting/timing control...
- Process saving and avoidance of mis-operation can be reached by the sealing & punching operation in a stage.
- Upper & Lower sealing can be adjusted respectively which is suitable for HDPE, LDPE and LLDPE. So does sealing pressure.
- With only 0.25MPa air pressure supply and 0.6~1 second, speical vacuum bag opening mechanism can stronger the efficiency of opening and never fail.
- The working table is equipped with positioning ruler which can adjust X and Y axis freely in only 3 seconds.
- Rewinder with 2 track can be time-saving for change of mother roll, in the meantime, it can also solve the length difference which occurred by the inner and outer film rolls of single film roll.
- Multifunction alarm system works when no material supply, abnormal temperature & air pressure supply and counting reach etc.
SPECIFICATIONS: P.S. Customization could be available.
Model | Making Bag Size(mm) | Making Bag Speed (sec./bag) |
Air Supply Required | Heater Capacity (KW) |
Power Required (KW) |
Machine Size | |||||||
Length | Width | Thickness | |||||||||||
HDPE | LDPE | HDPE | LDPE | HDPE | LDPE | L. | W. | H. | |||||
SFM-220P | 150~650 | 150~650 | 250~550 | 250~550 | 0.015 ~0.065 |
0.020 ~0.085 |
2 Second |
0.45~0.8 Mpa 250L/min |
Total: 1.6 KW |
1.7 KW | 1.8M | 1.52M | 1.35M |
- Specifications are subject to change without notice.
