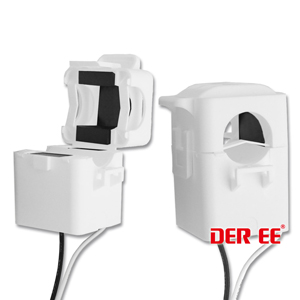

Split-core type with clip-on design, easy installation at set-up devices and distribution board
Built-in circuit protection from over voltage even secondary circuit open
Compact size work up to 120A AC
Cost-effective solution
Two ends hook attached to secure primary conductor with cable-ties (SCT-16A)
Applicable for power saving facilities and overload protection systems
Applicable for 5A secondary output of current transformer
Isolated plastic case recognized according to UL 94-V0

Specifications：
Primary Current Range：10mA~120A RMS (50/60Hz), RL≦10Ω
Application frequency：10~5KHz
Accuracy of the Linearity：CLASS 1.0, RL≦10Ω
Maximum Primary Current：300A RMS continuous
Primary Conductor Hole：φ16mm
Output Features：refer to graphic
Coil of Secondary Circuit：3000±2 turns (With 10.2V Suppressor inside)
Coil Resistance of Secondary Circuit：290Ω±10% (at 25℃)
Enclosure Material：NYLON Flame Retardant (UL-94V0)
Output Cord Length：Typical 150mm (different length also available with customer’s request)
Max circuit voltage：AC 600V
Dielectric Strength：1000V AC / 1min between primary conductor hole and output
Open circuit protection：10.2V (Zener diode)
Insulation Resistance：＞100MΩ at 500V DC between primary conductor hole and output
Weight：approx. 70g
Operating Condition：-20~60℃, below 80% R.H. no condensation (SCT-16A)
Operating Condition：-20~50℃, below 80% R.H. no condensation (SCT-16B)
Storage Condition：-30~70℃, below 70% R.H. no condensation
