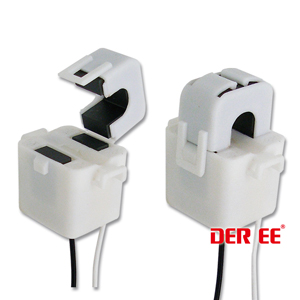

SCT-10 Split Core CT
| Item No.: | SCT-10 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Split-core type with clip-on design,
easy installation at set-up devices and distribution board
Built-in circuit protection from
over voltage even secondary circuit open
Compact size works up to 80A AC
Cost-effective solution
Two ends hook attached to secure primary conductor with cable-ties
Applicable for power saving facilities and overload protection systems
Applicable for 5A secondary output of current transformer
Isolated plastic case recognized according to UL 94-V0
Specifications：
Primary Current Range：10mA~80A RMS (50/60Hz), RL≦10Ω
Application frequency：10~5KHz
Accuracy of the Linearity：CLASS 1.0, RL≦10Ω
Maximum Primary Current：120A RMS continuous
Primary Conductor Hole：φ10mm
Output Features：refer to graphic
Coil of Secondary Circuit：3000±2 turns (With 10.2V Suppressor inside)
Coil Resistance of Secondary Circuit：350Ω±10% (at 25℃)
Enclosure Material：NYLON Flame Retardant (UL-94V0)
Output Cord Length：Typical 700mm (different length also available with customer’s request)
Max circuit voltage：AC 600V
Dielectric Strength：1000V AC / 1min between primary conductor hole and output
Open circuit protection：10.2V (Zener diode)
Insulation Resistance：＞100MΩ at 500V DC between primary conductor hole and output
Weight：approx. 40g
Operating Condition：-20~50℃, below 80% R.H. no condensation
Storage Condition：-30~70℃, below 70% R.H. no condensation
