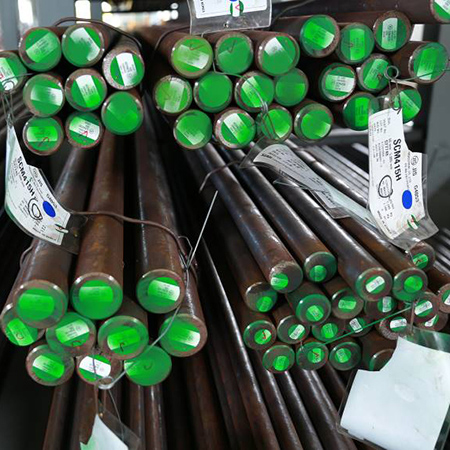

Chromium molybdenum alloy steel
Commonly used in various shafts, spindles, mechanical parts, pistons and gears, etc.
1.Ingredient:
2.Equivalent steel:
3.Heat treatment:
4.Mechanical properties:
5.Origin Place:Taiwan,China,Korea
Commonly used in various shafts, spindles, mechanical parts, pistons and gears, etc.
1.Ingredient:
Steel Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
---|---|---|---|---|---|---|---|---|
SCM415 | 0.13-0.18 | 0.15-0.35 | 0.60-0.90 | <0.030 | <0.030 | <0.25 | 0.90-1.20 | 0.15-0.25 |
2.Equivalent steel:
Equivalent steel | JIS | AISI | DIN | GB |
---|---|---|---|---|
SCM415 | 4150 | 15CrMo5 | 15CrMo |
3.Heat treatment:
Normalization | Annealing | Quenching | Tempering |
---|---|---|---|
850-900 Air Cooling | 850 Furnace Cooling | 1st 850-900 Oil Cooling 2nd 800-850 Oil Cooling |
150-200 Air Cooling |
4.Mechanical properties:
Yielding Strength (N/mm²) | Tensile Strength ( kgf/mm²) | Elongation (%) | Section reduction (%) | Charpy | Hardness (HBW) |
---|---|---|---|---|---|
>85 | >16 | >40 | >69 | 235~321 |
5.Origin Place:Taiwan,China,Korea
