SATA 7P MALE R/A DIP TYPE - SATRC-M07XXXXL0-G

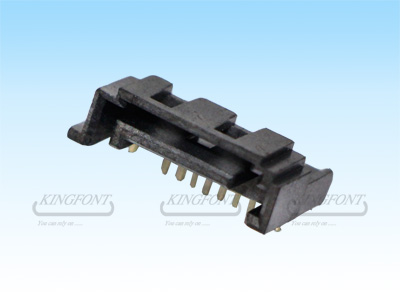

SATA 7P MALE R/A DIP TYPE

Item No.: SATRC-M07XXXXL0-G
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom: 17 Products

Product Name:SATA 7P MALE R/A DIP TYPE     Part No:SATRC-M07 XX  X  X L0-G                     (1)  (2)  (3)   (1) Contact area plating:    01: 01u’’ Gold Flash plating       15: 15u’’ Gold plating       30: 30u’’ Gold plating (2) N:NY6T
   L:LCP   (3) B:BLACK
   L:BLUE    Y:YELLOW   Pitch: 1.27mm Number of port: 1 Circuits: 7 RoHS compliant Net Weight: 0.5g Packing: 25pcs/Tube;45tubes/Sheaf;1sheaf/inner carton;4 inner cartons/shipping carton (4500pcs) APPLICATION:
Mother Board/ Hard Disk Drive /optical drives SPECIFICATION:  Electrical: 1.      Current rating: 1.5 A 2.      Contact resistance: 30 Milliohms MAX 3.      Dielectric Withstanding Voltage: 500V AC . 4.      Insulation Resistance:1000 Megohms min Environmental: Operating temperature: -20℃ ~ 85℃   MATERIAL: 1.      Housing: LCP 30% G/F UL94 V-0  Color:Black 2.      Contacts: BRASS T=0.25mm 3.      Board Lock: BRASS T=0.3mm PRODUCT FEATURES:
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

SATA 7P MALE R/A DIP TYPE

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
