Steel Snap Hook - F-11B-15R / RF-240 / F-12-C1 / RF-219

Steel Snap Hook

Item No.: F-11B-15R / RF-240 / F-12-C1 / RF-219
Supplier Details
Country: Taiwan
City: Changhua County 505
Address: No. 36, Lugong S. 2nd Rd., Lukang Township
TEL: +886-4-7810588
Fax: +886-4-7810688
Online Showroom: 43 Products
Double-action Swivel Eye Snap Hook / Indicator Snap Hook / Steel Snap Hook

Snap hooks are mostly applied to fall arresters, working lanyard, positioning lanyard, and energy absorbing lanyards. It could be coordinate with other fall protection products.

Shopping Tips:

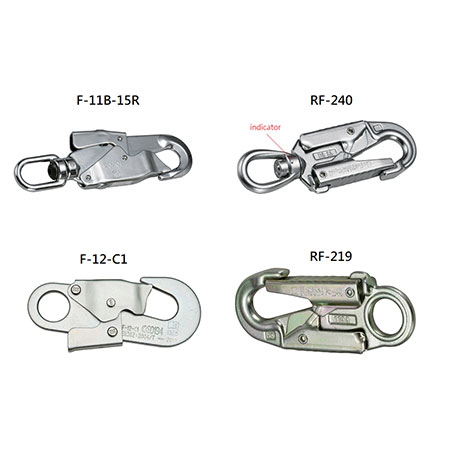

  • For swivel snap hooks, we recommend F-11B-15R or RF-240.
    For steel snap hooks, F-12-C1 or RF-219 is enough. It depends on the strength and gate opening you need.

F-11B-15R
  1. Strength:20KN swivel snap hook
  2. Material:Steel
  3. L x W:128.8mm*54mm
  4. Gate opening:16 mm
  5. Product Weight (approx.):0.42 KG
  6. Certified to:EN362:2004

High light product:
  • If you need an indicator on snap hooks, we also could supply.
    For swivel snap hooks with indicator, RF-240 is the best choice for users could check if this fall arrester is used or not to keep them safe.

RF-240
  1. Strength:20KN swivel snap hook with indicator
  2. Material:Steel
  3. L x W:166mm*56.5mm
  4. Gate opening:18 mm
  5. Product Weight (approx.):0.38 KG
  6. Certified to:EN362:2004

F-12-C1
  1. Strength:20KN snap hook
  2. Material:Steel
  3. L x W:128.8mm*54mm
  4. Gate opening:17 mm
  5. Product Weight (approx.):0.30 KG
  6. Certified to:EN362:2004

RF-219
  1. Strength:22KN snap hook
  2. Material:Steel
  3. L x W:141.7mm*57.1mm
  4. Gate opening:18 mm
  5. Product Weight (approx.):0.32 KG
  6. Certified to:EN362:2004

Related Products:
  F-11B-15R RF-240 F-12-C1 RF-219
Type Snap Hook Snap Hook Snap Hook Snap Hook
Swivel Swivel Swivel Non-Swivel Non-Swivel
Strength 20KN 20KN 20KN 22KN
Material Steel Steel Steel Steel
Dimension 128.8*54mm 166*56.5mm 128.8*54mm 141.7*57.1mm
Gate Opening 16mm 18mm 17mm 18mm
Unit Weight 0.42kg 0.38kg 0.3kg 0.32kg

  F-15-1 HK001 HK005 HK006
Strength 22KN 22KN 25KN 25KN
Material Steel Steel Aluminum Steel
Dimension 212.4*100.8mm 199*116mm 216.1*120.3mm 199*107mm
Gate Opening 51mm 51mm 53mm 51mm
Unit Weight 0.5kg 0.42kg 0.28kg 0.31kg
Origin Taiwan Taiwan Taiwan China
