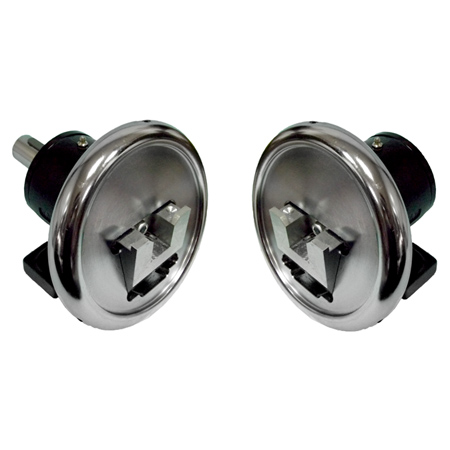

Safety Chuck
Item No.: | TYB |

Size |
Max. weight of beam |
Max. tolerance of torque |
End size of scroll |
Weight |
STOW 28- |
800 (kg) |
180 (Nm) |
22-30 (mm) |
18 (kg) |
STOW 35- |
1600 (kg) |
350 (Nm) |
30-40 (mm) |
25 (kg) |
STOW 50- |
2800 (kg) |
1100 (Nm) |
40-50 (mm) |
50 (kg) |
FLOW 28- |
800 (kg) |
180 (Nm) |
22-30 (mm) |
18 (kg) |
FLOW 35- |
1600 (kg) |
350 (Nm) |
30-40 (mm) |
25 (kg) |
FLOW 50- |
2800 (kg) |
1100 (Nm) |
40-50 (mm) |
50 (kg) |
Remark:
The safety chuck can be used in various winding and unwind machines. It provides fast, truly, simple and safe coupling. The heavy loading of design is suitable for most of conversion system that can support the maximum loading and rotation.
1. The safety chuck can connect or separate frequently.
2. The safety chuck works precisely and accurately that guarantees the accurate localization.
3. The scroll bore is made by the special heat treatment craft.
4. It can be replaced with VT model of scroll installed location and extend the using life.
