8M_Mid-bus, Middle Bus, Short-Distance Bus, Long-distance Bus, Designed／Assembly Bus, Tourist Bus
    Key Features

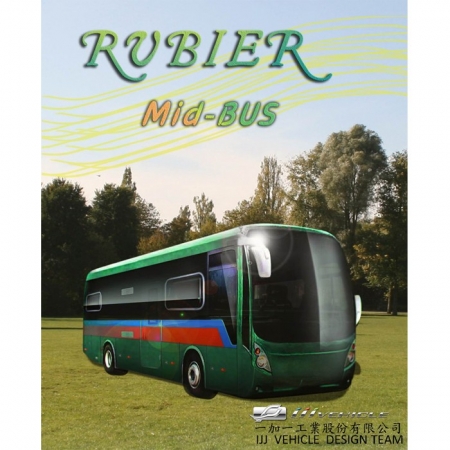

    Mid-Bus 8M
    (City Bus)
    Passenger :16-23 seats
    Mid-Bus / 8 m
    Vehicle Type：RUBIER
    Application：Short-Distance Intercity / Citybus
    Model： FA154L
    Chassis：Faw CA6730CRD21

    The Body Frame Structure was Cage Style Design.
    Overall Framework Used in High-Tension Steel Tubes.
    Lightweight and Reduce Pollution.
    Also Increase Traffic Safety and Enhance Comfort.

    Main Specification
    Dimensions
    Overall length：7, 865 mm
    Overall Width：2,220 mm
    Overall Height：2,950 mm (Includes Overhead Air Conditioners)
    Wheelbase：3,850 mm
    Tyres： 215/75 R17.5

    Weights
    front axle load ：3,000 kg
    rear axle load ：5,500 kg
    Ratio：4.875
    GVW：8,500 kg
    Unladen Weight：~ 5,300 kg
    Luggage capacity： ~1 m3

    Main Body Configuration
    Green Material of Insulation and Sound Absorbing.
    Number of Seats：27 (Including Diver)

    Engine
    Cummins ISF3.8S4154/5154 SCR
    Output 115/2600 Kw/rpm  (154hp/2600rpm)
    Torque 500/1200-1900 N.m/rpm
    Fuel Tank Capacity：150L (Stardand)

    Transmission：QJGT S5-70, 5speed/Reverse
    Suspension and Steering
    Front and Rear：Leaf Springs, 2 shock absorbers, Rigid front axle.
    Power steering with built-in servo unit, Gear：17.76

    Brakes
    Front and Rear：Drum Brakes (Option：ABS, disc brakes)

    Doors
    Front door opening inward and to the front
    Driver door opening outward and to the front

    Electrical system
    Number of batteries：2 / Battery capacity：12V/110 Ah
    Voltage：24 V
    Alternators output：28V/120 A
