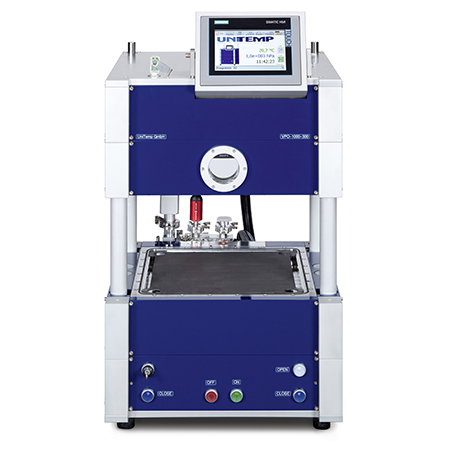

RTP System
| Item No.: | VPO-1000-300 Top loading |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products
Specification:
1. Chamber size: 350 x 350 x 50 mm
2. Loading area: 320 x 320 x 50 mm (optinal: chamber height 120 mm)
3. Chamber walls: Aluminium polished, easy to clean (optional: stainless steel)
4. Cover: opens and closed vertically (top loader)
5. Bottom heating: 2 x 24 lamps crossed 21 kW
6. Control: SIMATIC SPS with touch panel 7"
7. 50 programs with 50 steps each storable
8. 1 Mass Flow controller for 5 nlm (=norm liter per minute) is standard
9. MP (Membrane pump): 10 hPa. Monitored by manometer.
10. Power supply: 2 x [CEE 3 x 32 A / 3~ +N+ PE, 230 V]. Back side.
11. Vacuum connector: KF 16
12. Exhaust: KF16 rear site
13. Gas lines: 4 mm OD Swagelok compression fitting
14. Cooling water supply: 10 mm hose
15. Feed through: 2 x DN 16
16. Dimension: 505 x 504 xx 780 mm (WxDxH)
17. Weight: about 100 kg
【Brand： UNITEMP/GERMAN 】
