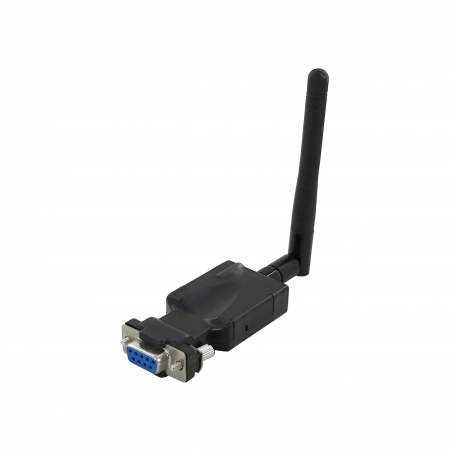

RS232 to Bluetooth 2.1
| Item No.: | BT232 |
Supplier Details
Country: Taiwan
City: Kaohsiung
Address: 1F, 149 Xingzhong 1st Road
TEL: +886-7-2223185
Fax: +886-7-2230532
Online Showroom:
30 Products
www.atac.com.tw
https://www.atac.com.tw/392/bluetooth-to-rs232-bt232/
sales@atac.com.tw
Overview & Application
Selective as Slave or Master mode
Bluetooth v2.1 + EDR
SPP profile
Bluetooth Class 1
Configuration utility with ease of use
Specifications:
Windows utility for setup
Use RS232 Parallel (pin to pin) cable to connect to PC for setup
Selective as Slave or Master mode
Bluetooth v2.1 EDR compliant
Support SPP profile
Bluetooth Class 1
Connector: RS232 DB9 Female * 1
Range: 300 feet (1200~115200 bps)
Auto Pairing without software setup [when using a pair (2 units) of this device that one set as Master and the other set as Slave] 3.0 dBi exchangeable antenna
Enable two RS232 devices to communicate over Bluetooth
Power consumption: DC5V 150mA
Power supply for BT232 may not be needed if the RS232 device pin 9 can provide DC+5V 150mA
When pairing two units of this Bluetooth RS232 converter with each other, one should be set as Master and the other should be set as Slave.
