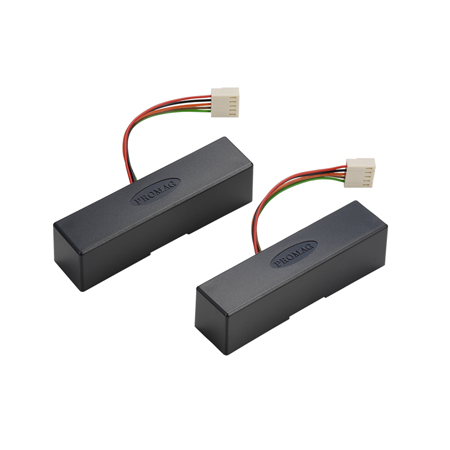

RFID Reader Module

Introduction :
RF222 / MF222 is designed for Magnetic Stripe Reader to use RFID technology substitute solution. The advantage of contactless reading and compatible MSR module housing, use PROMAG RFID technology at 125Khz or 13.56Mhz is your best system upgradeable scenario.

PROMAG RFID reader module RF222 / MF222 is the best choice to upgrade specification from Magnetic stripe module to RFID reader module, it is very simple to install RFID reader
module just change RF222 or MF222 RFID module to original interface of MSR module without any additional hardware or enclosure tooling change.

Features :
Contactless reading
MSR interface
90mm MSR housing compatible
Small and compact design
Easy to install
Applications :
Time recorder
Access control terminal
Auto-ID data collection terminal
Security device

Specification :

Model No.	RF222	MF222
Power requirement	5VDC ± 5% at 55mA typical	5VDC ± 5% at 50mA typical
Frequency	125KHz	13.56Mhz
Read Range	80mm with ISO card *1	20~50mm *1
	MSR ABA track2
Interface	Wiegand 26bit Serial TTL 9600bps,8N1
Wire length	100 mm
Transponder	Read only	Read only for Mifare® MF1 / Ultralight
Safety certificate	CE / FCC
Dimension	90 (L) x 22.5(W) x 24(H) mm	90 (L) x 22.5(W) x 24(H) mm
Operating temperature	-10 to 60 Deg C	-10 to 60 Deg C
Operating relative humidity	10 ~ 90%.	10 ~ 90%.

*1 Typical maximum read in ideal conditions
Available Versions :
RF222A ---- 125KHz / MSR ABA Tack2 interface
RF222W---- 125KHz/ Wiegand interface
RF222S----- 125KHz/ Serial TTL interface
MF222A----- 13.56Mhz / MSR ABA Track2 interface
MF222W---- 13.56Mhz / Wiegand interface
MF222S----- 13.56Mhz / Serial TTL interface

※ Mifare is a registered trademark of Philips Electronics N.V
※ Specification is subject to change without notice.
