Proximity Reader

Introduction:

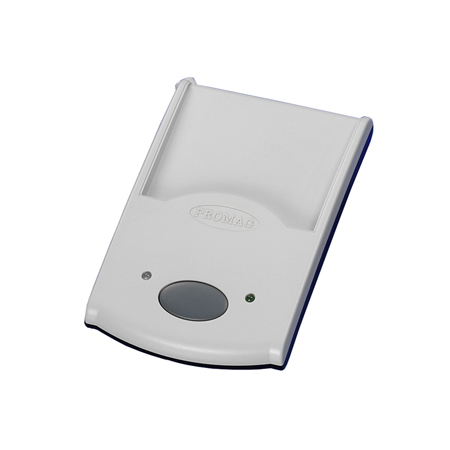

WinLoq PCR300F is specially designed for the use of the PC security, user identification/authorization and user privacy protection with RFID technology. It is a simple-to-use device, which can read the registration ID code from the Proximity Cards owned by the users. It can be used for the system logon/logoff key and also for user privacy protection by simply push a Privacy key to instant hide the Monitor display without EXIT or power off like BOSS PROTECTION feature. PCR300 is a perfect PC security system to use WinLoq software, which can protect the System and prevent the unauthorized people from using the System.
Features:
·User Privacy BOSS PROTECTION feature
·Privacy key for instant hide Monitor display
·Verify the ID code of the RFID Proximity cards
·Cradle slot design to accept RFID card- run Winloq
System is workable when the registered card is sitting in the cradle slot- Unlocked
System is not workable when the registered card is removed from the cradle slot- Locked
User Privacy Protection– Boss Protection feature
System logon/logoff- system security management

Specifications:

Baud rate	9600 None parity 8 data bits, 1 stop bit
Power requirements	5 V / 200 mA
Interfaces	USB
	RS232
Card Type	Proximity card
Card dimension	86 x 55 x 2 mm maximum
Dimension (mm)	W 65 X L 100 X D23 mm
Housing	ABS
Weight	115 g
Operating temperature	-10 ~ +55° C
Operating relative humidity	10 ~ 90 %

Ordering Information:
PCR300FU : USB interface, 125Khz
PCR300FR : RS232 interface, 125Khz
Two ID housings available for selection.

※ Specification is subject to change without notice.
